ELM8-32.000MHz-16-R40-B1U-T,3225mm,AEL车载控制器晶振

ELM8-32.000MHz-16-R40-B1U-T,3225mm,AEL车载控制器晶振，AEL晶振，艾尔晶振，英国进口晶振，型号：ELM8晶振，编码为：ELM8-32.000MHz-16-R40-B1U-T，频率为：32.000MHz，负载：16pF，工作温度范围：-20℃至+75℃，频率稳定性：±10ppm，频率容差：±10ppm，小体积晶振尺寸：3.2x2.5mm封装，四脚贴片晶振，石英晶体谐振器，SMD晶振，石英晶振，无源晶振，无铅环保晶振。具有超小型，轻薄型，高品质，高可靠性等特点。被广泛应用于：移动通讯晶振，平板电脑晶振，车载控制器晶振，无线蓝牙晶振，数码电子应用等。

订购热线：86-0755-27839045

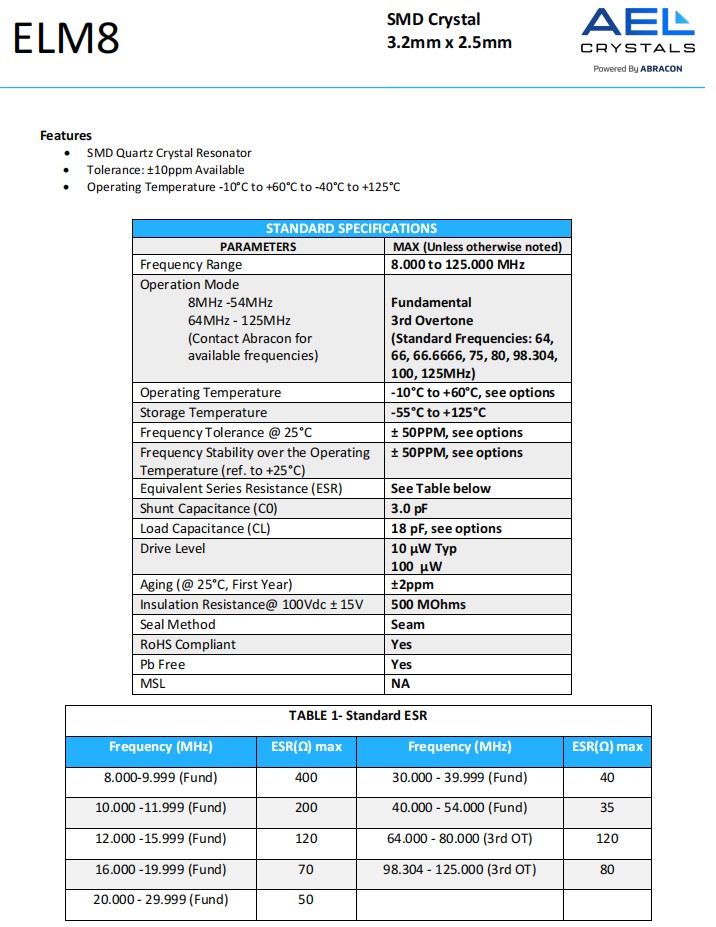

ELM8-32.000MHz-16-R40-B1U-T,3225mm,AEL车载控制器晶振,参数表

STANDARD SPECIFICATIONS
PARAMETERS						MAX (Unless otherwise noted)
Frequency Range						32.000MHz
Operation Mode 8MHz -54MHz 64MHz - 125MHz (Contact Abracon for available frequencies)						Fundamental 3rd Overtone (Standard Frequencies: 64, 66, 66.6666, 75, 80, 98.304, 100, 125MHz)
Operating Temperature						-10°C to +60°C, see options
Storage Temperature						-55°C to +125°C
Frequency Tolerance @ 25°C						± 50PPM, see options
Frequency Stability over the Operating Temperature (ref. to +25°C)						± 50PPM, see options
Equivalent Series Resistance (ESR)						See Table below
Shunt Capacitance (C0)						3.0 pF
Load Capacitance (CL)						18 pF, see options
Drive Level						10 μW Typ 100 μW
Aging (@ 25°C, First Year)						±2ppm
Insulation Resistance@ 100Vdc ± 15V						500 MOhms
Seal Method						Seam
RoHS Compliant						Yes
Pb Free						Yes
MSL						NA

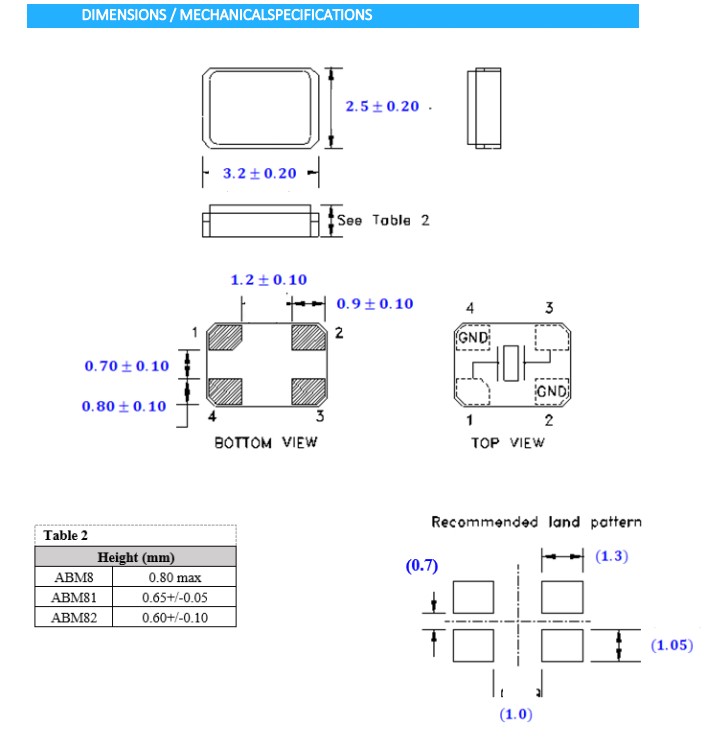

ELM8-32.000MHz-16-R40-B1U-T,3225mm,AEL车载控制器晶振,尺寸图

产品编码	晶振厂家	型号	频率	负载电容
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL晶振	ELLS	10 MHz	20 pF
ELLS-12.000MHz-18-R60-A-4-F-T	AEL晶振	ELLS	12 MHz	18 pF
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL晶振	ELLS	13.56 MHz	10 pF
ELLS-30.000MHz-10-R50-B1U-F-T	AEL晶振	ELLS	30 MHz	10 pF
ELLS-4.000MHz-16-R120-A4-F-T	AEL晶振	ELLS	4 MHz	16 pF
ELLS-4.000MHz-16-R120-B1X-F-T	AEL晶振	ELLS	4 MHz	16 pF
ELLS-4.000MHz-30-R120-D4-F-T	AEL晶振	ELLS	4 MHz	30 pF
ELLS-8.000MHz-16-R45-D4-F-T	AEL晶振	ELLS	8 MHz	16 pF
ELM10-16.000MHz-8-R60-2-D20-T	AEL晶振	ELM10	16 MHz	8 pF
ELM10-24.000MHz-16-R100-X-N15-T	AEL晶振	ELM10	24 MHz	16 pF
ELM11-32.000MHz-10-R60-D1X-T	AEL晶振	ELM11	32 MHz	10 pF
ELM12W-24.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	24 MHz	6 pF
ELM3-12.000MHz-30-R80-D4Y-T	AEL晶振	ELM3	12 MHz	30 pF
ELM3-14.000MHz-30-R80-D4H-T	AEL晶振	ELM3	14 MHz	30 pF
ELM3-24.000MHz-18-R40-D4H-T	AEL晶振	ELM3	24 MHz	18 pF
ELM3-8.057MHz-18-R100-B4Y-T	AEL晶振	ELM3	8.057 MHz	18 pF
ELM8-12.000MHz-10-R50-D4Y-T	AEL晶振	ELM8	12 MHz	10 pF
ELM8-12.5829MHz-16-R60-1U-T	AEL晶振	ELM8	12.5829 MHz	16 pF
ELM8-14.000MHz-16-R150-B1U-T	贴片晶振	ELM8	14.8 MHz	16 pF
ELM8-18.432MHz-16-R80-DQ-T	AEL晶振	ELM8	18.432 MHz	16 pF
ELM8-24.000MHz-10-R60-D1W-T	AEL晶振	ELM8	24 MHz	10 pF
ELM8-24.000MHz-18-R60-B1W-T	AEL晶振	ELM8	24 MHz	18 pF
ELM8-24.000MHz-9-R40-N1U-T	AEL晶振	ELM8	24 MHz	9 pF
ELM8-26.000MHz-18-R60-B1U-T	AEL晶振	ELM8	26 MHz	18 pF
ELM8-32.000MHz-16-R40-B1U-T	AEL晶振	ELM8	32 MHz	16 pF
ELM8-32.000MHz-9-R40-D1G-T	AEL晶振	ELM8	32 MHz	9 pF
ELS05-32.768kHz-9-T	AEL晶振	ELS05	32.768 kHz	9 pF
ELS06-32.768kHz-9-T	AEL晶振	ELS06	32.768 kHz	9 pF
ELS07-32.768kHz-6-T	AEL晶振	ELS07	32.768 kHz	6 pF
ELS07-32.768kHz-T	AEL晶振	ELS07	32.768 kHz	12.5 pF
ELS13-32.768kHz-7-T	AEL晶振	ELS13	32.768 kHz	7 pF
ELS13-32.768kHz-9-T	AEL晶振	ELS13	32.768 kHz	9 pF
ELS13-32.768kHz-T	AEL晶振	ELS13	32.768 kHz	12.5 pF
ELS25-32.768kHz-6-2-T	AEL晶振	ELS25	32.768 kHz	6 pF
ELS25-32.768kHz-T	AEL晶振	ELS25	32.768 kHz	12.5 pF
