AE-135-A-2-4085-3-18-24M0000,3225mm,Anderson轻薄型晶振，美国进口晶振，Anderson安德森晶振，型号：AE135，编码为：AE-135-A-2-4085-3-18-24M0000，校准公差：±20ppm，工作温度范围：-40℃至+85℃，温度稳定性：±30ppm，负载电容：18pF，频率为：24.000MHz，小体积晶振尺寸：3.2x2.5x0.8mm，四脚贴片晶振，无源晶振，SMD石英晶体，石英晶体谐振器，具有超小型，轻薄型，高品质，耐热及耐环境特点。这款陶瓷AE135可用于蓝牙晶振、通讯设备，PMCIA、无线等应用。
AE-135-A-2-4085-3-18-24M0000,3225mm,Anderson轻薄型晶振，产品特点：
频率范围：12.0MHz-150.0MHz
小型接缝密封封装，高度低，石英晶体
在频率稳定性、老化、精度和可靠性方面表现出优异的技术性能
可用于基本和第三高音模式
磁带/卷轴符合EIA 481，符合ROHS/无铅

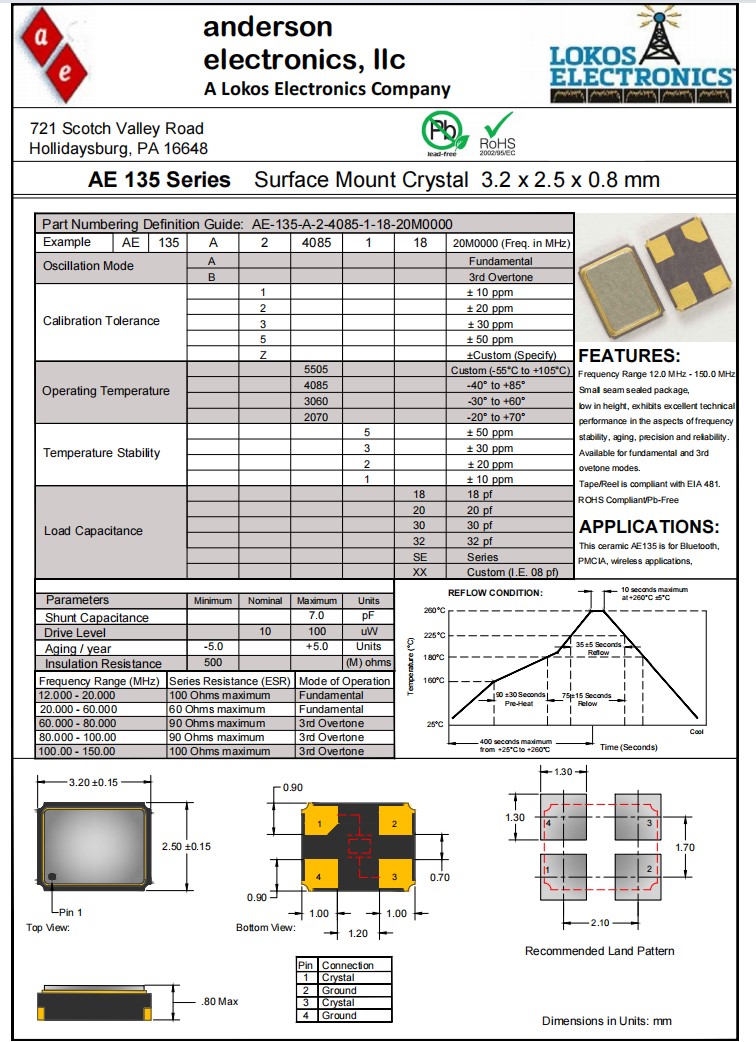

AE-135-A-2-4085-3-18-24M0000,3225mm,Anderson轻薄型晶振,参数表
|
Part Numbering Definition Guide: AE-135-A-2-4085-3-18-24M0000
|
|
Example
|
AE
|
135
|
A
|
2
|
4085
|
3
|
18
|
24M0000(Freq. in MHz)
|
|
Oscillation Mode
|
A
|
|
|
|
|
Fundamental
|
|
B
|
|
|
|
|
3rd Overtone
|
|
Calibration Tolerance
|
|
1
|
|
|
|
± 10 ppm
|
|
2
|
|
|
|
± 20 ppm
|
|
3
|
|
|
|
± 30 ppm
|
|
5
|
|
|
|
± 50 ppm
|
|
Z
|
|
|
|
±Custom (Specify)
|
|
Operating Temperature
|
|
|
5505
|
|
|
Custom(-55°C to +105°C)
|
|
|
4085
|
|
|
-40° to +85°
|
|
|
3060
|
|
|
-30° to +60°
|
|
|
2070
|
|
|
-20° to +70°
|
|
Temperature Stability
|
|
|
|
5
|
|
± 50 ppm
|
|
|
|
3
|
|
± 30 ppm
|
|
|
|
2
|
|
± 20 ppm
|
|
|
|
1
|
|
± 10 ppm
|
|
Load Capacitance
|
|
|
|
|
18
|
18 pf
|
|
|
|
|
20
|
20 pf
|
|
|
|
|
30
|
30 pf
|
|
|
|
|
32
|
32 pf
|
|
|
|
|
SE
|
Series
|
|
|
|
|
XX
|
Custom (I.E. 08 pf)
|

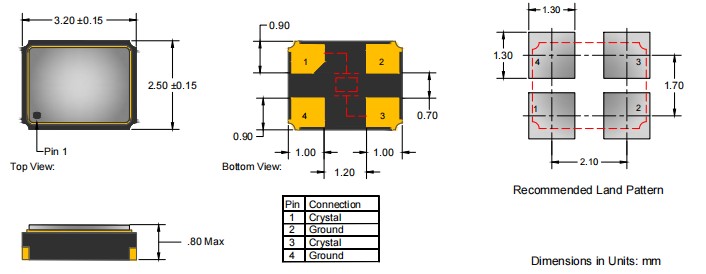

AE-135-A-2-4085-3-18-24M0000,3225mm,Anderson轻薄型晶振,尺寸图
