什么是石英可编程晶振?可编程晶振实为有源晶振，石英可编程（Q MEMS）具有高稳定、高精度等优越性能的石英材料[QUARTZ]和[MEMS]组合而成的造词，以石英为原料进行精微加工(光刻)并可以提供的小型化、高性能的晶体元器件被称为[Q MEMS]。

可编程晶振就是可以满足任何频点的晶体振荡器，经过频率发生器的放大或缩小后实现各种不同的总线频率。应用于钟表、数码产品、车载数码、手机、对讲机、数码相机、MID平板电脑，光电技术等通讯设备及各种频率控制设备

爱普生可编程晶振SG-8018CA编码X1G005571026500可以满足任何频点的晶体振荡器

石英晶振	频率	型号	尺寸(长宽高)	输出波	电源电压	工作温度
X1G005571001100	25.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571001200	25.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571001300	20.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571001400	20.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571001500	50.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571001600	50.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571001700	48.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571001800	48.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571001900	24.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571002000	24.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571002100	40.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571002200	40.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571002300	16.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571002400	16.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571002500	12.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571002600	12.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571002700	10.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571002800	10.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

爱普生可编程晶振SG-8018CA编码X1G005571026500可以满足任何频点的晶体振荡器

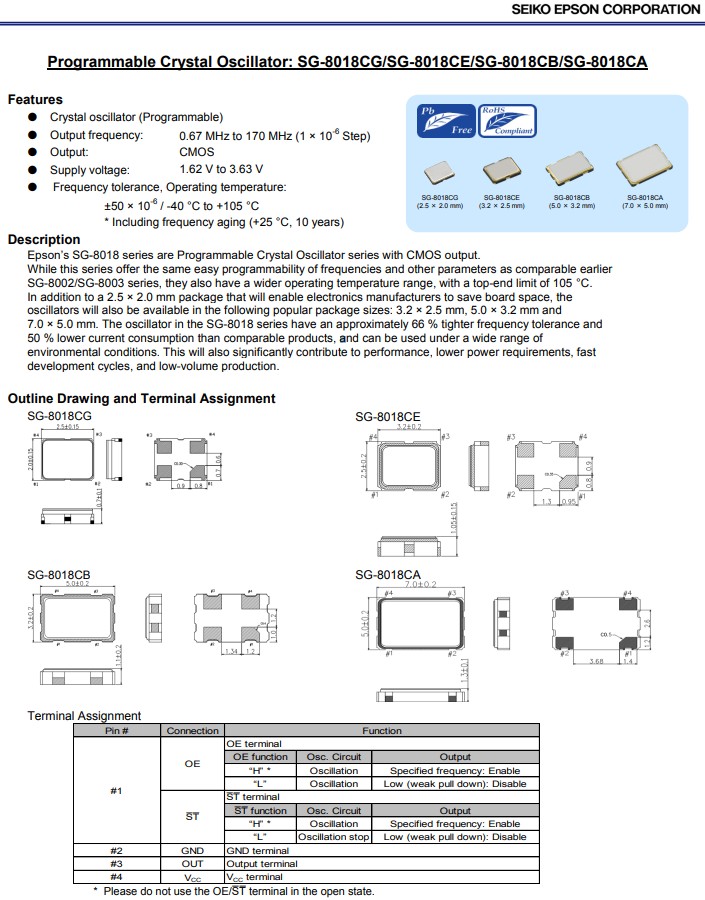

爱普生的SG-8018系列是CMOS输出的可编程石英晶体振荡器系列。虽然该系列提供了与早期类似的频率和其它参数的同样容易的可编程性 SG-8002/SG-8003系列，它们还具有更宽的工作温度范围，上限为105℃。除了2.5x2.0mm封装有助于电子制造商节省电路板空间之外，这些振荡器还提供以下常见封装尺寸:3.2x2.5mm、5.0x3.2mm和7.0x5.0mm。SG-8018系列中的振荡器的频率容差约小66% 电流消耗比同类产品低50%，可在各种环境条件下使用。这也将大大有助于提高性能、降低功耗要求、缩短开发周期和实现小批量生产。

X1G005571024700	33.554432 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571024800	27.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571024900	45.158400 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571025000	40.680000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571025100	25.000625 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571025200	28.224000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571025300	7.987200 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571025400	3.686400 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571025500	6.144000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571025600	77.980000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571025700	4.192000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571025800	3.904000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571025900	32.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571026000	64.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571026100	19.200000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571026200	3.072000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571026300	1.228800 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571026400	65.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571026500	26.000000 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005571026600	44.236800 MHz	SG-8018CA	7.00x5.00x1.40mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

爱普生可编程晶振SG-8018CA编码X1G005571026500可以满足任何频点的晶体振荡器
其实可编程晶振有一个好听的名称：硅晶体。通俗易懂而言，可编程晶振即是把您对晶振参数，例如频率偏差，工作电压，负载电容，频率提供给晶振厂商，厂商通过电脑等设备进行编程，按下确定键就可以把这些参数写入空白晶片上。通常生产交期1-3天，我们知道，常规的无源晶振还是有源晶振，晶片现货情况下，生产交期2-3周，常规交期4-6周左右，特殊时期2-3个月都是常态，因此，于交期而言，可编程晶振不仅交期具有优势，就频率而言，可编程晶振更是拥有灵活的可编程性质。在功能上，彻底解除温漂问题。
