艾迪悌LVDS差分晶振,4MA156250Z4AACTGI,6G基站应用晶振

艾迪悌LVDS差分晶振,4MA156250Z4AACTGI,6G基站应用晶振，美国进口晶振，IDT晶振，4MA系列编码为：4MA156250Z4AACTGI，频率为：156.25MHZ，小体积晶振尺寸：7.0x5.0mm，高性能差分MEMS振荡器，6脚贴片晶振，石英晶振，石英晶体振荡器，LVPECL输出差分晶振，无铅环保晶振，稳定性：± 50 ppm，电源电压：2.5V和3.3V，RMS相位抖动：0.6 ps典型（12k至20MHz），工作温度：- 40至85°C。具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电源电压，低耗能，低损耗，低电平等特点。4MA系列石英晶振应用于：通讯设备，无线网络，蓝牙模块，物联网，汽车电子，医疗设备，数码电子，路由器，交换机，数字通信系统，测量仪器，频率合成器等。

订购热线：86-0755-27839045

CTS-1

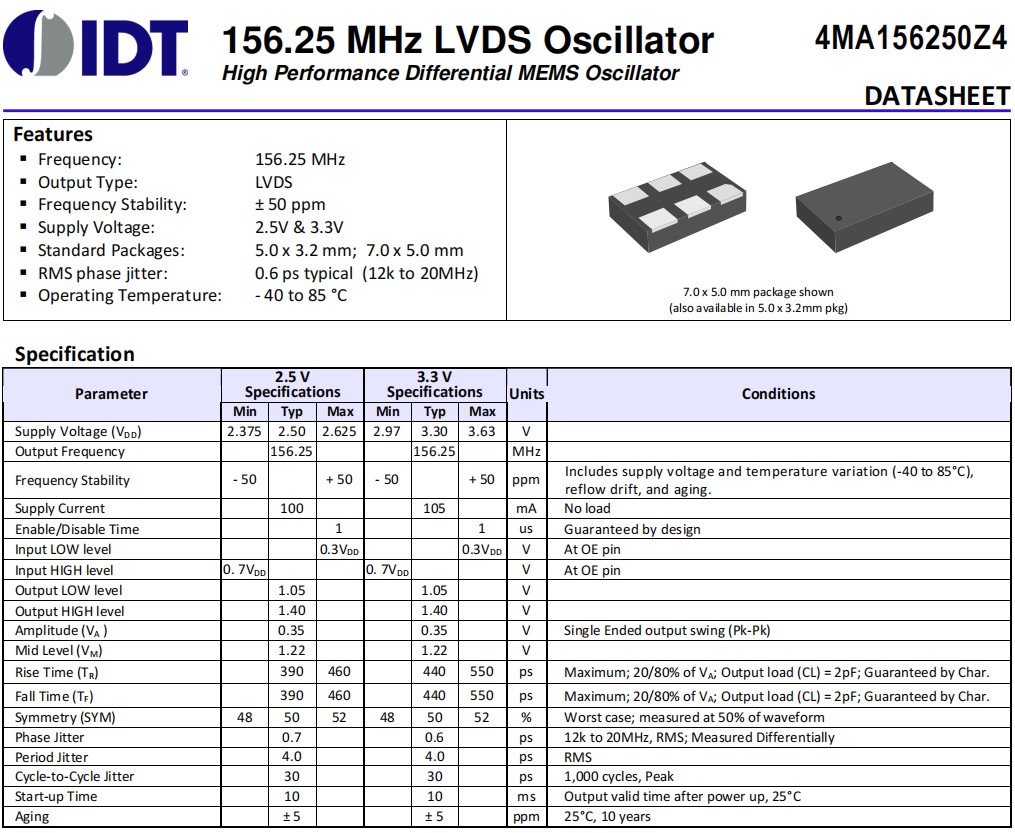

艾迪悌LVDS差分晶振,4MA156250Z4AACTGI,6G基站应用晶振 参数表

Parameter

2.5 V
Specifications

3.3 V
Specifications

Units

Conditions

Min

Typ

Max

Min

Typ

Max

Supply Voltage (VDD)

2.375

2.50

2.625

2.97

3.30

3.63

Output Frequency

156.25

MHz

Frequency Stability

- 50

+ 50

- 50

+ 50

ppm

Includes supply voltage and temperature variation (-40 to 85°C),
reflow drift, and aging.

Supply Current

100

105

No load

Enable/Disable Time

Guaranteed by design

Input LOW level

0.3VDD

At OE pin

Input HIGH level

0. 7VDD

At OE pin

Output LOW level

1.05

Output HIGH level

1.40

Amplitude(VA )

0.35

Single Ended output swing (Pk-Pk)

Mid Level (VM)

1.22

Rise Time (TR)

390

460

440

550

Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char.

Fall Time (TF)

390

460

440

550

Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char.

Symmetry (SYM)

Worst case; measured at 50% of waveform

Phase Jitter

0.7

0.6

12k to 20MHz, RMS; Measured Differentially

Period Jitter

4.0

RMS

Cycle-to-Cycle Jitter

1,000 cycles, Peak

Start-up Time

Output valid time after power up, 25°C

Aging

± 5

ppm

25°C, 10 years

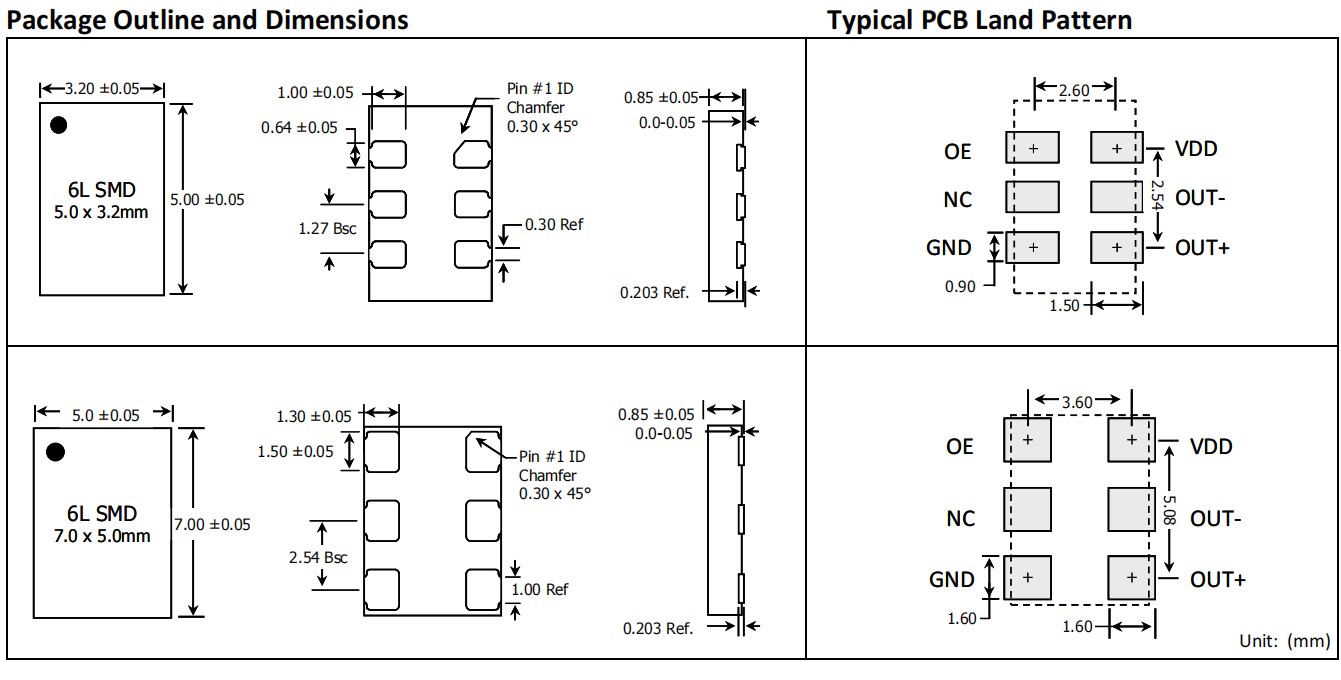

艾迪悌LVDS差分晶振,4MA156250Z4AACTGI,6G基站应用晶振 尺寸图

艾迪悌LVDS差分晶振,4MA156250Z4AACTGI,6G基站应用晶振

产品特点：

频率：156.25MHz

输出类型：LVDS

频率稳定性：±50 ppm

电源电压：2.5V和3.3V

标准包装：5.0 x 3.2mm；7.0 x 5.0mm石英晶体振荡器

RMS相位抖动：典型值为0.6 ps（12k至20MHz）

工作温度：-40至85°C

原厂代码	晶振厂家	参数	型号	频率	输出
4MA125000Z4AACTGI	IDT晶振	OSC MEMS 125.000MHZ LVDS SMD	4MA	125MHz	LVDS
4MA148500Z3AACTGI	IDT晶振	OSC MEMS 148.50MHZ LVPECL SMD	4MA	148.5MHz	LVPECL
4MA148500Z4AACTGI	IDT晶振	OSC MEMS 148.50MHZ LVDS SMD	4MA	148.5MHz	LVDS
4MA150000Z4AACTGI	IDT晶振	OSC MEMS 150.000MHZ LVDS SMD	4MA	150MHz	LVDS
4MA155520Z4AACTGI	IDT晶振	OSC MEMS 155.52MHZ LVDS SMD	4MA	155.52MHz	LVDS
4MA156250Z4AACTGI	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4MA	156.25MHz	LVDS
IDT4MA100000Z3AACUGI8	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4MA	100MHz	LVPECL
IDT4MA125000Z3AACUGI8	IDT晶振	OSC MEMS 125.000MHZ LVPECL SMD	4MA	125MHz	LVPECL
IDT4MA133333Z3AACUGI8	IDT晶振	OSC MEMS 133.333MHZ LVPECL SMD	4MA	133.333MHz	LVPECL
IDT4MA150000Z3AACUGI8	IDT晶振	OSC MEMS 150.000MHZ LVPECL SMD	4MA	150MHz	LVPECL
IDT4MA156250Z3AACUGI8	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4MA	156.25MHz	LVPECL
IDT4MA200000Z3AACUGI8	IDT晶振	OSC MEMS 200.000MHZ LVPECL SMD	4MA	200MHz	LVPECL
4MA050000Z4AACTGI	IDT晶振	OSC MEMS 50.000MHZ LVDS SMD	4MA	50MHz	LVDS
4MA050000Z4AACUGI	IDT晶振	OSC MEMS 50.000MHZ LVDS SMD	4MA	50MHz	LVDS
4MA050000Z4BACTGI	IDT晶振	OSC MEMS 50.000MHZ LVDS SMD	4MA	50MHz	LVDS
4MA050000Z4BACUGI	IDT晶振	OSC MEMS 50.000MHZ LVDS SMD	4MA	50MHz	LVDS
4MA066000Z3AACTGI	IDT晶振	OSC MEMS 66.000MHZ LVPECL SMD	4MA	66MHz	LVPECL
4MA066000Z3AACUGI	IDT晶振	OSC MEMS 66.000MHZ LVPECL SMD	4MA	66MHz	LVPECL
4MA100000Z3AACTGI	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4MA	100MHz	LVPECL
4MA100000Z3AACUGI	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4MA	100MHz	LVPECL
4MA100000Z4AACTGI	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4MA	100MHz	LVDS
4MA100000Z4AACUGI	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4MA	100MHz	LVDS
4MA125000Z3AACTGI	IDT晶振	OSC MEMS 125.000MHZ LVPECL SMD	4MA	125MHz	LVPECL
4MA125000Z3AACUGI	IDT晶振	OSC MEMS 125.000MHZ LVPECL SMD	4MA	125MHz	LVPECL
4MA125000Z4AACTGI8	IDT晶振	OSC MEMS 125.000MHZ LVDS SMD	4MA	125MHz	LVDS
4MA125000Z4AACUGI	IDT晶振	OSC MEMS 125.000MHZ LVDS SMD	4MA	125MHz	LVDS
4MA125000Z4AACUGI8	IDT晶振	OSC MEMS 125.000MHZ LVDS SMD	4MA	125MHz	LVDS
4MA125000Z4BACTGI	IDT晶振	OSC MEMS 125.000MHZ LVDS SMD	4MA	125MHz	LVDS
4MA125000Z4BACTGI8	IDT晶振	OSC MEMS 125.000MHZ LVDS SMD	4MA	125MHz	LVDS
4MA133000Z3AACTGI	IDT晶振	133.000MHZ LVPECL 差分晶振	4MA	133MHz	LVPECL
4MA133000Z3AACTGI8	IDT晶振	OSC MEMS 133.000MHZ LVPECL SMD	4MA	133MHz	LVPECL
4MA133000Z3AACUGI	IDT晶振	OSC MEMS 133.000MHZ LVPECL SMD	4MA	133MHz	LVPECL
4MA133000Z3AACUGI8	IDT晶振	OSC MEMS 133.000MHZ LVPECL SMD	4MA	133MHz	LVPECL
4MA133330Z4AACTGI	IDT晶振	OSC MEMS 133.33MHZ LVDS SMD	4MA	133.33MHz	LVDS
4MA133330Z4AACTGI8	IDT晶振	OSC MEMS 133.33MHZ LVDS SMD	4MA	133.33MHz	LVDS
4MA133330Z4BACTGI	IDT晶振	OSC MEMS 133.33MHZ LVDS SMD	4MA	133.33MHz	LVDS
4MA133330Z4BACTGI8	IDT晶振	OSC MEMS 133.33MHZ LVDS SMD	4MA	133.33MHz	LVDS
4MA148352Z4AACUGI	IDT晶振	OSC MEMS 148.352MHZ LVDS SMD	4MA	148.352MHz	LVDS
4MA148500Z3AACTGI8	IDT晶振	OSC MEMS 148.50MHZ LVPECL SMD	4MA	148.5MHz	LVPECL
4MA148500Z3AACUGI	IDT晶振	OSC MEMS 148.50MHZ LVPECL SMD	4MA	148.5MHz	LVPECL
4MA148500Z3AACUGI8	IDT晶振	OSC MEMS 148.50MHZ LVPECL SMD	4MA	148.5MHz	LVPECL
4MA148500Z4AACTGI8	IDT晶振	OSC MEMS 148.50MHZ LVDS SMD	4MA	148.5MHz	LVDS
4MA148500Z4AACUGI	IDT晶振	OSC MEMS 148.50MHZ LVDS SMD	4MA	148.5MHz	LVDS
4MA148500Z4AACUGI8	IDT晶振	OSC MEMS 148.50MHZ LVDS SMD	4MA	148.5MHz	LVDS
4MA148500Z4BACTGI	IDT晶振	OSC MEMS 148.50MHZ LVDS SMD	4MA	148.5MHz	LVDS
4MA148500Z4BACTGI8	IDT晶振	OSC MEMS 148.50MHZ LVDS SMD	4MA	148.5MHz	LVDS
4MA150000Z3AACUGI	IDT晶振	OSC MEMS 150.000MHZ LVPECL SMD	4MA	150MHz	LVPECL
4MA150000Z4AACTGI8	IDT晶振	OSC MEMS 150.000MHZ LVDS SMD	4MA	150MHz	LVDS
4MA150000Z4AACUGI	IDT晶振	OSC MEMS 150.000MHZ LVDS SMD	4MA	150MHz	LVDS
