32MHz,2016mm,ABM11AIG-32.000MHZ-4Z-T3,±50ppm,10pF,符合AEC-Q200

32MHz,2016mm,ABM11AIG-32.000MHZ-4Z-T3,±50ppm,10pF,符合AEC-Q200，美国进口晶振，Abracon艾博康晶振型号：ABM11AIG，编码为：ABM11AIG-32.000MHZ-4Z-T3，频率为：32.000MHz，是一款小体积晶振尺寸2.0x1.6x0.55mm封装，四脚贴片晶振，无源晶振，石英晶体谐振器，石英晶振，无铅环保晶振，符合AEC-Q200标准，工作温度范围：-40℃到+125℃/150℃，符合RoHS/RoHS II标准，应用于：信息娱乐系统，无钥匙进入和启动，GPS和导航，汽车电子晶振，舒适控制ADAS（先进的驾驶员辅助系统），车辆到车辆通信，激光雷达（光探测和测距），车载网络，动力系统和驱动，控制电源控制和转换，工业控制和自动化应用.

订购热线：86-0755-27839045

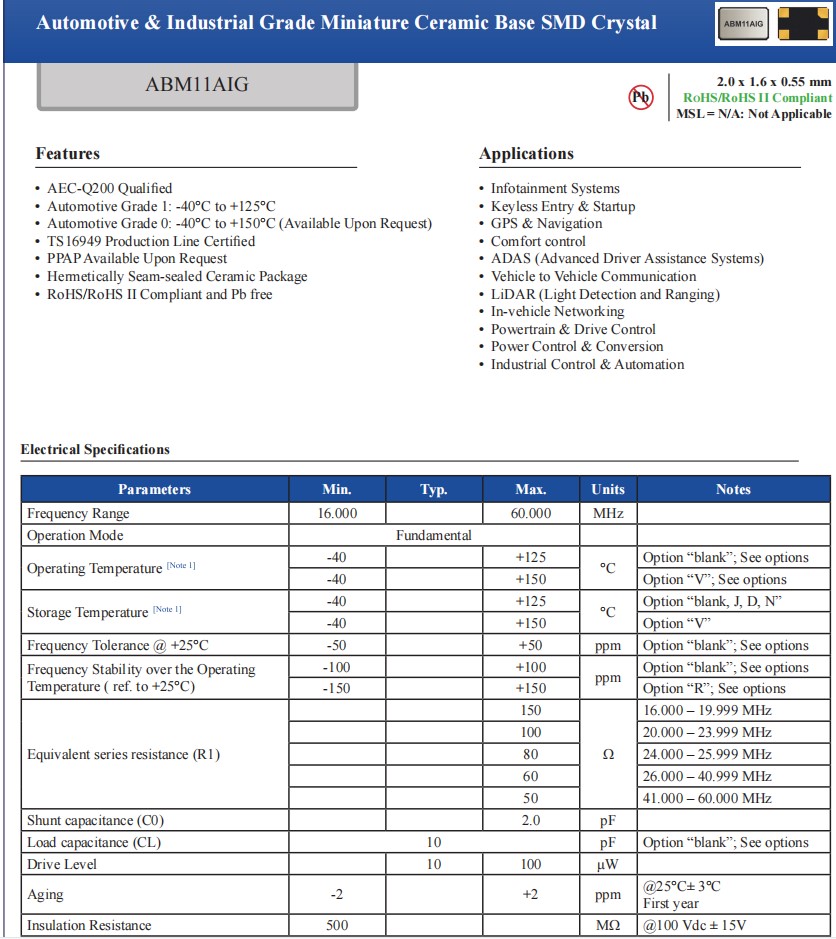

32MHz,2016mm,ABM11AIG-32.000MHZ-4Z-T3,±50ppm,10pF,符合AEC-Q200，参数图

ABM11AIG	Min.	Typ.	Max.	Units	Notes
Frequency Range	16		60	MHz
Operation Mode	Fundamental
Operating Temperature [Note 1]	-40		125	°C	Option “blank”; See options
Operating Temperature [Note 1]	-40		150	°C	Option “V”; See options
Storage Temperature [Note 1]	-40		125	°C	Option “blank, J, D, N”
Storage Temperature [Note 1]	-40		150	°C	Option “V”
Frequency Tolerance @ +25°C	-50		50	ppm	Option “blank”; See options
Frequency Stability over the Operating Temperature ( ref. to +25°C)	-100		100	ppm	Option “blank”; See options
	-150		150	ppm	Option “R”; See options
Equivalent series resistance (R1)			150	Ω	16.000 – 19.999MHz
			100		20.000 – 23.999MHz
			80		24.000 – 25.999MHz
			60		26.000 – 40.999MHz
			50		41.000 – 60.000MHz
Shunt capacitance (C0)			2	pF
Load capacitance (CL)	10			pF	Option “blank”; See options
Drive Level		10	100	μW
Aging	-2		2	ppm	@25°C± 3°C First year
Insulation Resistance	500			MΩ	@100 Vdc ± 15V

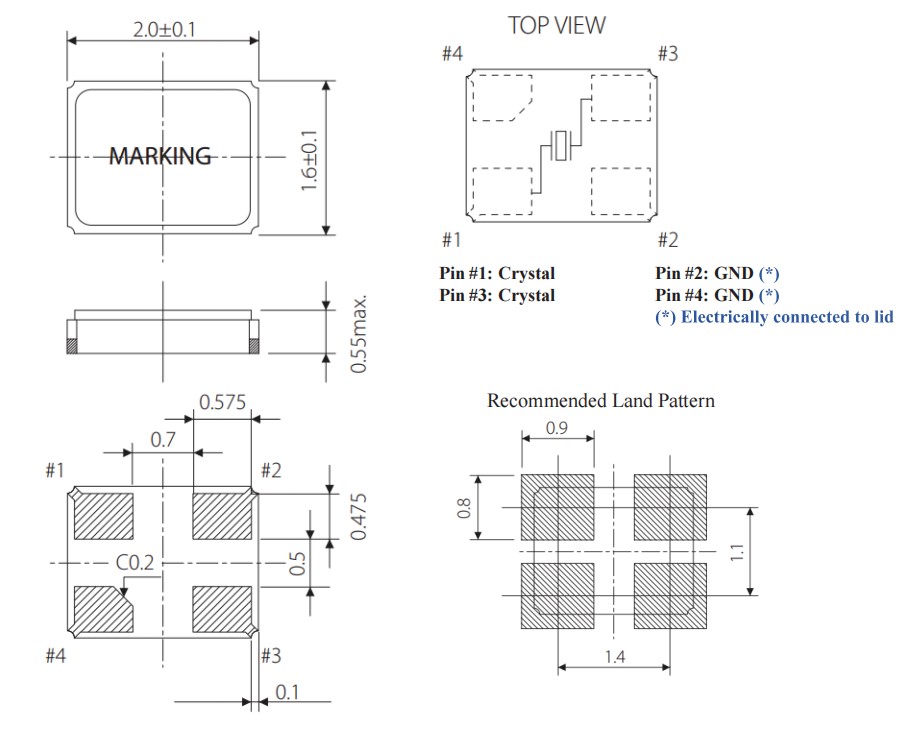

32MHz,2016mm,ABM11AIG-32.000MHZ-4Z-T3,±50ppm,10pF,符合AEC-Q200，尺寸图

32MHz,2016mm,ABM11AIG-32.000MHZ-4Z-T3,±50ppm,10pF,符合AEC-Q200

Features：
AEC-Q200 Qualified
Automotive Grade 1: -40°C to +125°C
Automotive Grade 0: -40°C to +150°C (Available Upon Request)
TS16949 Production Line Certified
PPAP Available Upon Request
Hermetically Seam-sealed Ceramic Package
RoHS/RoHS II Compliant and Pb free

ABM11AIG晶振特征：
AEC-Q200合格
汽车1级：-40°C至+125°C
汽车0级：-40°C至+150°C（可根据要求提供）
TS16949生产线认证
PPAP可根据要求提供
密封接缝密封陶瓷封装
符合RoHS/RoHS II标准且不含铅

贴片石英晶振	品牌	型号	系列	频率	包装/封装
ABM11AIG-24.000MHZ-4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	24MHz	4-SMD, No Lead
ABM11AIG-40.000MHZ-4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	40MHz	4-SMD, No Lead
ABM11AIG-27.000MHZ-4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	27MHz	4-SMD, No Lead
ABM11AIG-32.000MHZ-4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	32MHz	4-SMD, No Lead
ABM11AIG-24.576MHZ-4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	24.576MHz	4-SMD, No Lead
ABM11AIG-19.200MHZ-4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	19.2MHz	4-SMD, No Lead
ABM11AIG-26.000MHZ-4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	26MHz	4-SMD, No Lead
ABM11AIG-30.000MHZ-4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	30MHz	4-SMD, No Lead
ABM11AIG-25.000MHZ-4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	25MHz	4-SMD, No Lead
ABM11AIG-20.000MHZ-4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	20MHz	4-SMD, No Lead
ABM11AIG-27.120HZ-4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	27.12MHz	4-SMD, No Lead
ABM11AIG-19.200MHZ-J4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	19.2MHz	4-SMD, No Lead
ABM11AIG-20.000MHZ-J4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	20MHz	4-SMD, No Lead
ABM11AIG-24.000MHZ-J4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	24MHz	4-SMD, No Lead
ABM11AIG-24.576MHZ-J4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	24.576MHz	4-SMD, No Lead
ABM11AIG-25.000MHZ-J4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	25MHz	4-SMD, No Lead
ABM11AIG-26.000MHZ-J4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	26MHz	4-SMD, No Lead
ABM11AIG-27.000MHZ-J4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	27MHz	4-SMD, No Lead
ABM11AIG-27.120HZ-J4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	27.12MHz	4-SMD, No Lead
ABM11AIG-30.000MHZ-J4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	30MHz	4-SMD, No Lead
ABM11AIG-32.000MHZ-J4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	32MHz	4-SMD, No Lead
ABM11AIG-40.000MHZ-J4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	40MHz	4-SMD, No Lead
ABM11AIG-48.000MHZ-J4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	48MHz	4-SMD, No Lead
ABM11AIG-19.200MHZ-4-T3	Abracon晶振	ABM11AIG	MHz Crystal	19.2MHz	4-SMD, No Lead
ABM11AIG-20.000MHZ-4-T3	Abracon晶振	ABM11AIG	MHz Crystal	20MHz	4-SMD, No Lead
ABM11AIG-24.000MHZ-4-T3	Abracon晶振	ABM11AIG	MHz Crystal	24MHz	4-SMD, No Lead
ABM11AIG-24.576MHZ-4-T3	Abracon晶振	ABM11AIG	MHz Crystal	24.576MHz	4-SMD, No Lead
ABM11AIG-25.000MHZ-4-T3	Abracon晶振	ABM11AIG	MHz Crystal	25MHz	4-SMD, No Lead
ABM11AIG-26.000MHZ-4-T3	Abracon晶振	ABM11AIG	MHz Crystal	26MHz	4-SMD, No Lead
ABM11AIG-27.000MHZ-4-T3	Abracon晶振	ABM11AIG	MHz Crystal	27MHz	4-SMD, No Lead
ABM11AIG-27.120HZ-4-T3	Abracon晶振	ABM11AIG	MHz Crystal	27.12MHz	4-SMD, No Lead
ABM11AIG-30.000MHZ-4-T3	Abracon晶振	ABM11AIG	MHz Crystal	30MHz	4-SMD, No Lead
ABM11AIG-32.000MHZ-4-T3	Abracon晶振	ABM11AIG	MHz Crystal	32MHz	4-SMD, No Lead
ABM11AIG-40.000MHZ-4-T3	Abracon晶振	ABM11AIG	MHz Crystal	40MHz	4-SMD, No Lead
ABM11AIG-48.000MHZ-4-T3	Abracon晶振	ABM11AIG	MHz Crystal	48MHz	4-SMD, No Lead
ABM11AIG-48.000MHZ-4Z-T3	Abracon晶振	ABM11AIG	MHz Crystal	48MHz	4-SMD, No Lead
