18pF,16MHz,3225mm,CS325S16000000ABJT,CS325S,±50ppm，日本进口晶振，CITIZEN西铁城晶振型号CS325S，编码为CS325S16000000ABJT，是一款小体积晶振尺寸3.2x2.5x0.6mm AT切割石英振子（表面贴装陶瓷封装），四脚贴片石英晶振，石英晶体谐振器，无源晶振， 石英晶振，无铅环保晶振，频率为:16MHz，工作温度范围：-40℃至+85℃，具有超小型，轻薄型，耐热，耐振、耐冲击等优良的耐环境特性，满足无铅焊接的高温回流温度曲线要求，应用于：小型便捷式设备，蓝牙模块晶振，一般民生机器，移动通讯设备，无线模块，汽车电子设备，数码电子，平板电脑，医疗设备等应用。
18pF,16MHz,3225mm,CS325S16000000ABJT,CS325S,±50ppm，参数图
|
型名
|
CS325S
|
条件
|
|
項目
|
|
公称周波数
|
f0
|
12.0MHz ~ 54.0MHz (基本波)
|
请咨询对应频率
|
|
周波数偏差
|
Δf/f0
|
±30ppm
|
基準温度(25℃)
|
|
周波数温度特性
|
Δf/f0
|
±30ppm
|
-10℃~+60℃
|
|
動作温度範囲
|
TOPR
|
-40℃ ~ +85℃
|
|
|
保存温度範囲
|
TSTR
|
-55℃ ~ +125℃
|
|
|
等価直列抵抗
|
R1
|
下表参照
|
基準温度(25℃)
|
|
負荷容量
|
CL
|
10.0pF ~ ∞
|
请指定
|
|
並列容量
|
C0
|
5.0pF Max.
|
|
|
励振レベル
|
DL
|
100μW Max.
|
|
|
絶縁抵抗
|
IR
|
500MΩMin.
|
DC100V±15V
|
|
経時変化 (1年目)
|
Δf/f0
|
±5ppm Max.
|
25℃±3℃
|

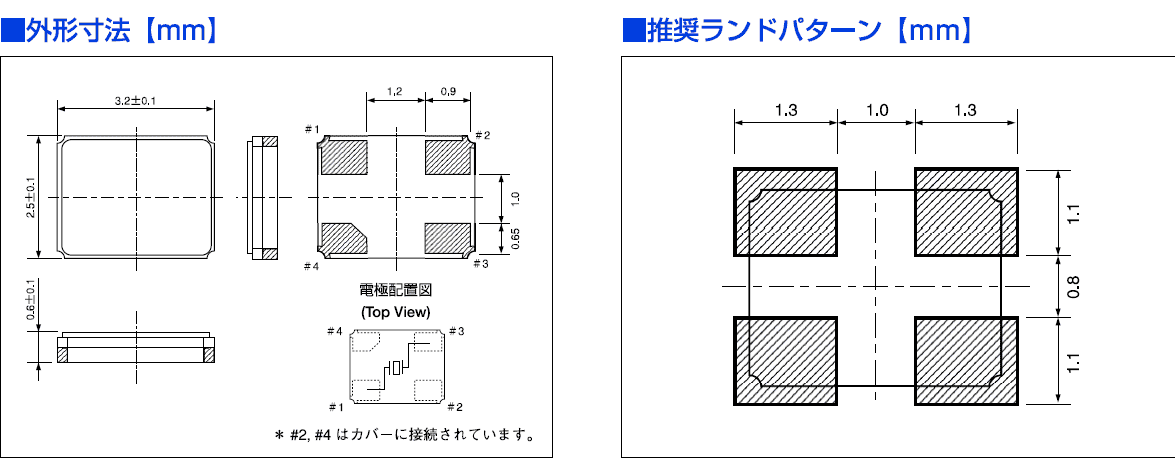

18pF,16MHz,3225mm,CS325S16000000ABJT,CS325S,±50ppm，尺寸图
18pF,16MHz,3225mm,CS325S16000000ABJT,CS325S,±50ppm，3225mm体积非常小的SMD晶振器件,是民用小型无线数码产品的最佳选择,小体积的晶振被应用于,手机蓝牙,GPS定位系统,无线通讯集,高频率的稳定性能,非常好的减少电磁干扰的影响,是民用无线数码产品最好的选择,符合RoHS/无铅.
|
原厂编码
|
西铁城晶振
|
参数
|
型号
|
频率
|
|
CS325S24000000ABJT
|
Citizen晶振
|
CRYSTAL 24.0000MHZ 18PF SMD
|
CS325S
|
24MHz
|
|
CS325S25000000ABJT
|
Citizen晶振
|
CRYSTAL 25.0000MHZ 18PF SMD
|
CS325S
|
25MHz
|
|
CS325S27000000ABJT
|
Citizen晶振
|
CRYSTAL 27.0000MHZ 18PF SMD
|
CS325S
|
27MHz
|
|
CS325S16000000ABJT
|
Citizen晶振
|
CRYSTAL 16.0000MHZ 18PF SMD
|
CS325S
|
16MHz
|
|
CS325S28636300ABJT
|
Citizen晶振
|
CRYSTAL 28.6363MHZ 18PF SMD
|
CS325S
|
28.6363MHz
|
|
CS325S13560000ABJT
|
Citizen晶振
|
CRYSTAL 13.5600MHZ 18PF SMD
|
CS325S
|
13.56MHz
|
|
CS325S18432000ABJT
|
Citizen晶振
|
CRYSTAL 18.4320MHZ 18PF SMD
|
CS325S
|
18.432MHz
|
|
CS325S13000000ABJT
|
Citizen晶振
|
CRYSTAL 13.0000MHZ 18PF SMD
|
CS325S
|
13MHz
|
|
CS325S27000000EEQT
|
Citizen晶振
|
CRYSTAL 27.0000MHZ 10PF SMD
|
CS325S
|
27MHz
|
|
CS325S33333300ABJT
|
Citizen晶振
|
CRYSTAL 33.3333MHZ 18PF SMD
|
CS325S
|
33.3333MHz
|
|
CS325S20500000ABJT
|
Citizen晶振
|
CRYSTAL 20.5000MHZ 18PF SMD
|
CS325S
|
20.5MHz
|
|
CS325S19200000EEQT
|
Citizen晶振
|
CRYSTAL 19.2000MHZ 10PF SMD
|
CS325S
|
19.2MHz
|
|
CS325S32000000ABJT
|
Citizen晶振
|
CRYSTAL 32.0000MHZ 18PF SMD
|
CS325S
|
32MHz
|
|
CS325S18432000ABIT
|
Citizen晶振
|
CRYSTAL 18.4320MHZ 16PF SMD
|
CS325S
|
18.432MHz
|
|
CS325S26000000ABJT
|
Citizen晶振
|
CRYSTAL 26.0000MHZ 18PF SMD
|
CS325S
|
26MHz
|
|
CS325S26650000ABJT
|
Citizen晶振
|
CRYSTAL 26.6500MHZ 18PF SMD
|
CS325S
|
26.65MHz
|
|
CS325S14318180ABJT
|
Citizen晶振
|
CRYSTAL 14.31818MHZ 18PF SMD
|
CS325S
|
14.31818MHz
|
|
CS325S40000000ABJT
|
Citizen晶振
|
CRYSTAL 40.0000MHZ 18PF SMD
|
CS325S
|
40MHz
|
|
CS325S26000000EEQT
|
Citizen晶振
|
CRYSTAL 26.0000MHZ 10PF SMD
|
CS325S
|
26MHz
|
|
CS325S52000000ABJT
|
Citizen晶振
|
CRYSTAL 52.0000MHZ 18PF SMD
|
CS325S
|
52MHz
|
|
CS325S18937500ABJT
|
Citizen晶振
|
CRYSTAL 18.9375MHZ 18PF SMD
|
CS325S
|
18.9375MHz
|
|
CS325S19069928ABJT
|
Citizen晶振
|
CRYSTAL 19.069928MHZ 18PF SMD
|
CS325S
|
19.069928MHz
|
|
CS325S19200000ABJT
|
进口晶振
|
CRYSTAL 19.2000MHZ 18PF SMD
|
CS325S
|
19.2MHz
|
|
CS325S24500000ABJT
|
Citizen晶振
|
CRYSTAL 24.5000MHZ 18PF SMD
|
CS325S
|
24.5MHz
|
|
CS325S24975000ABJT
|
Citizen晶振
|
CRYSTAL 24.9750MHZ 18PF SMD
|
CS325S
|
24.975MHz
|
|
CS325S27120000ABJT
|
Citizen晶振
|
CRYSTAL 27.1200MHZ 18PF SMD
|
CS325S
|
27.12MHz
|
|
CS325S28636360ABJT
|
Citizen晶振
|
CRYSTAL 28.63636MHZ 18PF SMD
|
CS325S
|
28.63636MHz
|
|
CS325S29491200ABJT
|
Citizen晶振
|
CRYSTAL 29.4912MHZ 18PF SMD
|
CS325S
|
29.4912MHz
|
|
CS325S37050000ABJT
|
Citizen晶振
|
CRYSTAL 37.0500MHZ 18PF SMD
|
CS325S
|
37.05MHz
|
|
CS325S12000000ABJT
|
Citizen晶振
|
CRYSTAL 12.0000MHZ 18PF SMD
|
CS325S
|
12MHz
|
|
CS325S24576000ABJT
|
Citizen晶振
|
CRYSTAL 24.5760MHZ 18PF SMD
|
CS325S
|
24.576MHz
|
|
CS325S30000000ABJT
|
Citizen晶振
|
CRYSTAL 30.0000MHZ 18PF SMD
|
CS325S
|
30MHz
|
|
CS325S12000000AGQT
|
Citizen晶振
|
CRYSTAL 12.0000MHZ 10PF SMD
|
CS325S
|
12MHz
|
|
CS325S16000000AAKT
|
Citizen晶振
|
CRYSTAL 16.0000MHZ 20PF SMD
|
CS325S
|
16MHz
|
|
CS325S24000000EEQT
|
Citizen晶振
|
CRYSTAL 24.0000MHZ 10PF SMD
|
CS325S
|
24MHz
|
|
CS325S-52.000MEEQ-UT
|
Citizen晶振
|
CRYSTAL 52.0000MHZ 10PF SMD
|
CS325S
|
52MHz
|
|
CS325S-38.400MEEQ-UT
|
Citizen晶振
|
CRYSTAL 38.4000MHZ 10PF SMD
|
CS325S
|
38.4MHz
|
