CX3225GA32000D0PTVZ1,3225mm,±50ppm,32MHz,SMD-2P，日本进口Kyocera京瓷晶振型号CX3225GA，编码为CX3225GA32000D0PTVZ1，是一款小体积晶振尺寸3.2x2.5mm陶瓷封装，水晶振动子，两脚贴片晶振，无源晶振，石英晶体谐振器，频率：32MHz，车载兼容石英振子，提高电极焊接部分耐久性，小型，薄型厚度0.85mm，小型薄型，出色的抗冲击性，支持回流，-40℃~+125℃热循环焊结强度支持3000循环，符合AEC-Q200，特别适用于移动电话，智能手机，平板电脑，无线蓝牙模块，无线局域网，汽车电子晶振，发动机控制，轮胎气压监测系统（TPMS），高速车载网络等应用。

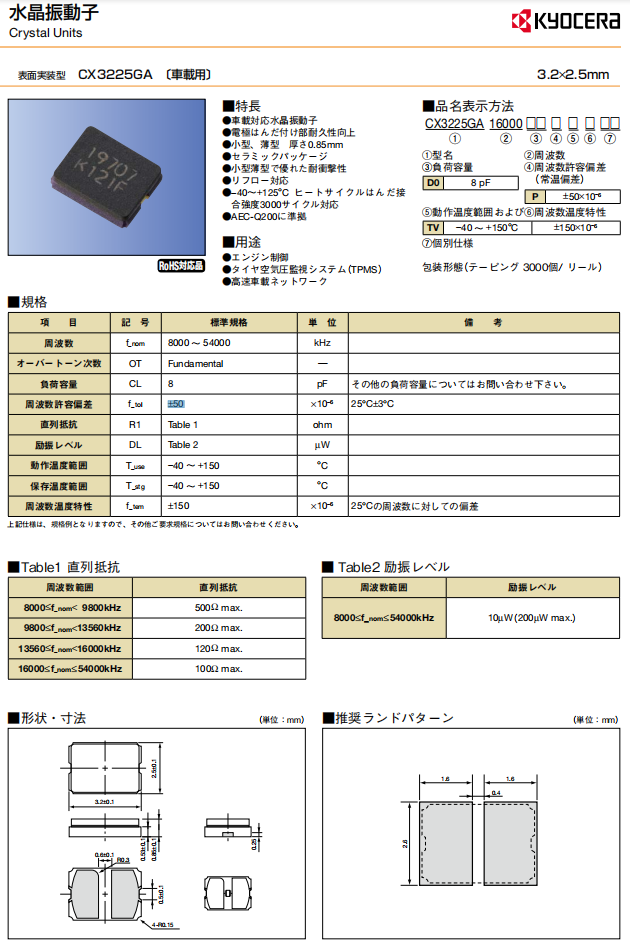

CX3225GA32000D0PTVZ1,3225mm,±50ppm,32MHz,SMD-2P，参数图
|
項 目
|
記 号
|
CX3225GA 规格
|
単 位
|
備 考
|
|
周波数
|
f_nom
|
8000 ~ 54000
|
kHz
|
|
|
超调阶数
|
OT
|
Fundamental
|
―
|
|
|
負荷容量
|
CL
|
8
|
pF
|
关于其他的负荷容量请咨询
|
|
周波数許容偏差
|
f_tol
|
±50
|
× 10−6
|
25°C±3°C
|
|
直列抵抗
|
R1
|
Table 1
|
ohm
|
|
|
激励水平
|
DL
|
Table 2
|
 W
|
|
|
動作温度範囲
|
T_use
|
−40 ~ +150
|
°C
|
|
|
保存温度範囲
|
T_stg
|
−40 ~ +150
|
°C
|
|
|
周波数温度特性
|
f_tem
|
± 150
|
× 10−6
|
相对于25℃频率的偏差
|

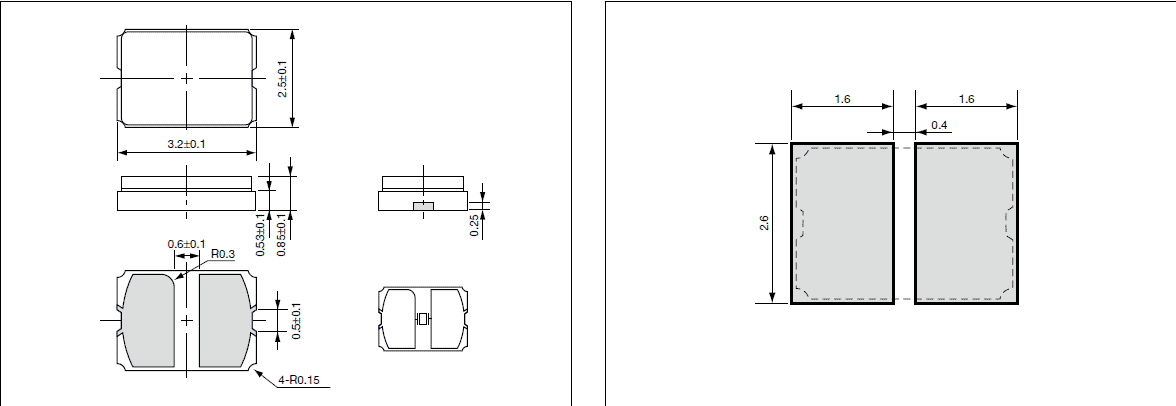

CX3225GA32000D0PTVZ1,3225mm,±50ppm,32MHz,SMD-2P，尺寸图
CX3225GA32000D0PTVZ1,3225mm,±50ppm,32MHz,SMD-2P，3225mm体积非常小的SMD晶振器件,是民用小型无线数码产品的最佳选择,小体积的晶振被应用于,手机蓝牙,GPS定位系统,无线通讯集,高频率的稳定性能,非常好的减少电磁干扰的影响,是民用无线数码产品最好的选择,符合RoHS/无铅.
|
原厂编码
|
晶振厂家
|
型号
|
频率
|
工作温度
|
包装/封装
|
|
CX3225GA24000D0PTVCC
|
Kyocera京瓷晶振
|
CX3225GA
|
24MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA25000D0PTVCC
|
Kyocera京瓷晶振
|
CX3225GA
|
25MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA20000D0PTVCC
|
Kyocera京瓷晶振
|
CX3225GA
|
20MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA26000D0PTVCC
|
Kyocera京瓷晶振
|
CX3225GA
|
26MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA30000D0PTVCC
|
Kyocera京瓷晶振
|
CX3225GA
|
30MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA27000D0PTVCC
|
Kyocera京瓷晶振
|
CX3225GA
|
27MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA13560D0PTVCC
|
Kyocera京瓷晶振
|
CX3225GA
|
13.56MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA32000D0PTVCC
|
Kyocera京瓷晶振
|
CX3225GA
|
32MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA09843D0PTVTT
|
Kyocera京瓷晶振
|
CX3225GA
|
9.843MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA12000D0PTVCC
|
Kyocera京瓷晶振
|
CX3225GA
|
12MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA10000D0PTVTT
|
Kyocera京瓷晶振
|
CX3225GA
|
10MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA16000D0PTVCC
|
Kyocera京瓷晶振
|
CX3225GA
|
16MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA28636D0PTVCC
|
石英贴片晶振
|
CX3225GA
|
28.63636MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA40000D0PTVCC
|
Kyocera京瓷晶振
|
CX3225GA
|
40MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA25000D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
25MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA26000D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
26MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA27000D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
27MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA09843D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
9.84375MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA28636D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
28.63636MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA30000D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
30MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA10000D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
10MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA32000D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
32MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA12000D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
12MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA40000D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
40MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA13560D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
13.56MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA16000D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
16MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA20000D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
20MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
|
CX3225GA24000D0PTVZ1
|
Kyocera京瓷晶振
|
CX3225GA
|
24MHz
|
-40°C ~ 150°C
|
2-SMD, No Lead
|
