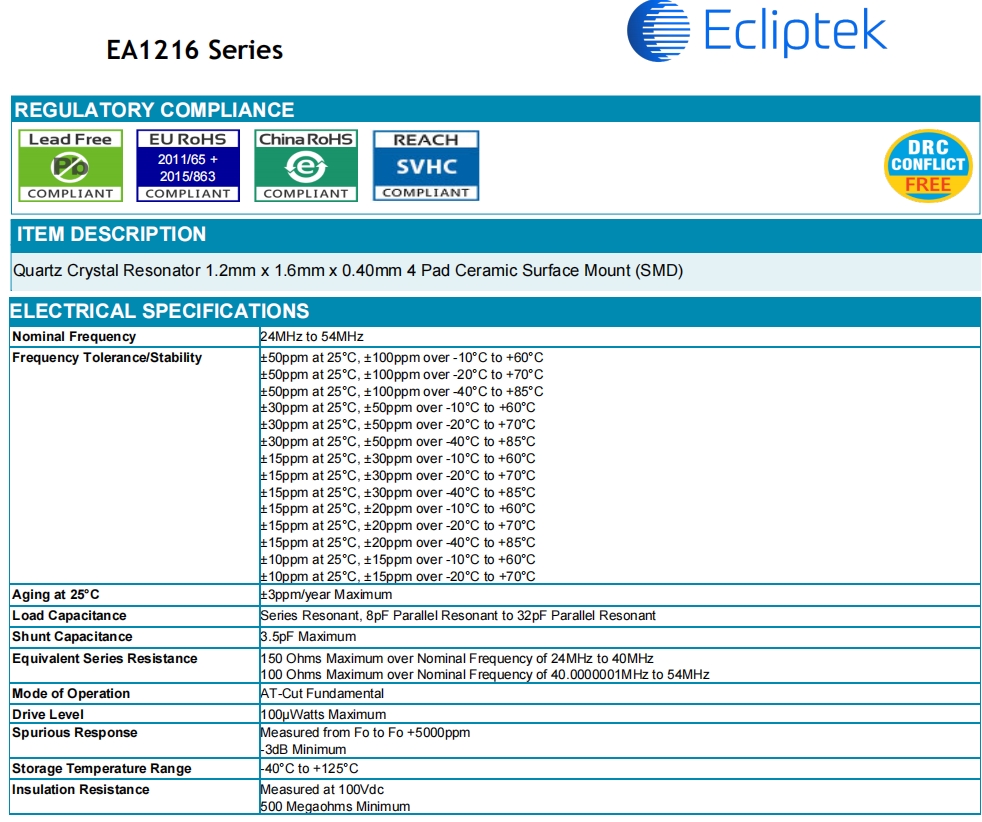

Nominal Frequency
|
54MHz
|
|
Frequency Tolerance/Stability
|
±50ppm at 25°C, ±100ppm over -10°C to +60°C
±50ppm at 25°C, ±100ppm over -20°C to +70°C
±50ppm at 25°C, ±100ppm over -40°C to +85°C
±30ppm at 25°C, ±50ppm over -10°C to +60°C
±30ppm at 25°C, ±50ppm over -20°C to +70°C
±30ppm at 25°C, ±50ppm over -40°C to +85°C
±15ppm at 25°C, ±30ppm over -10°C to +60°C
±15ppm at 25°C, ±30ppm over -20°C to +70°C
±15ppm at 25°C, ±30ppm over -40°C to +85°C
±15ppm at 25°C, ±20ppm over -10°C to +60°C
±15ppm at 25°C, ±20ppm over -20°C to +70°C
±15ppm at 25°C, ±20ppm over -40°C to +85°C
±10ppm at 25°C, ±15ppm over -10°C to +60°C
±10ppm at 25°C, ±15ppm over -20°C to +70°C
|
|
Aging at 25°C
|
±3ppm/year Maximum
|
|
Load Capacitance
|
Series Resonant, 8pF Parallel Resonant to 32pF Parallel Resonant
|
|
Shunt Capacitance
|
3.5pF Maximum
|
|
Equivalent Series Resistance
|
150 Ohms Maximum over Nominal Frequency of 24MHz to 40MHz
100 Ohms Maximum over Nominal Frequency of 40.0000001MHz to 54MHz
|
|
Mode of Operation
|
AT-Cut Fundamental
|
|
Drive Level
|
100µWatts Maximum
|
|
Spurious Response
|
Measured from Fo to Fo +5000ppm
-3dB Minimum
|
|
Storage Temperature Range
|
-40°C to +125°C
|
|
Insulation Resistance
|
Measured at 100Vdc
500 Megaohms Minimum
|

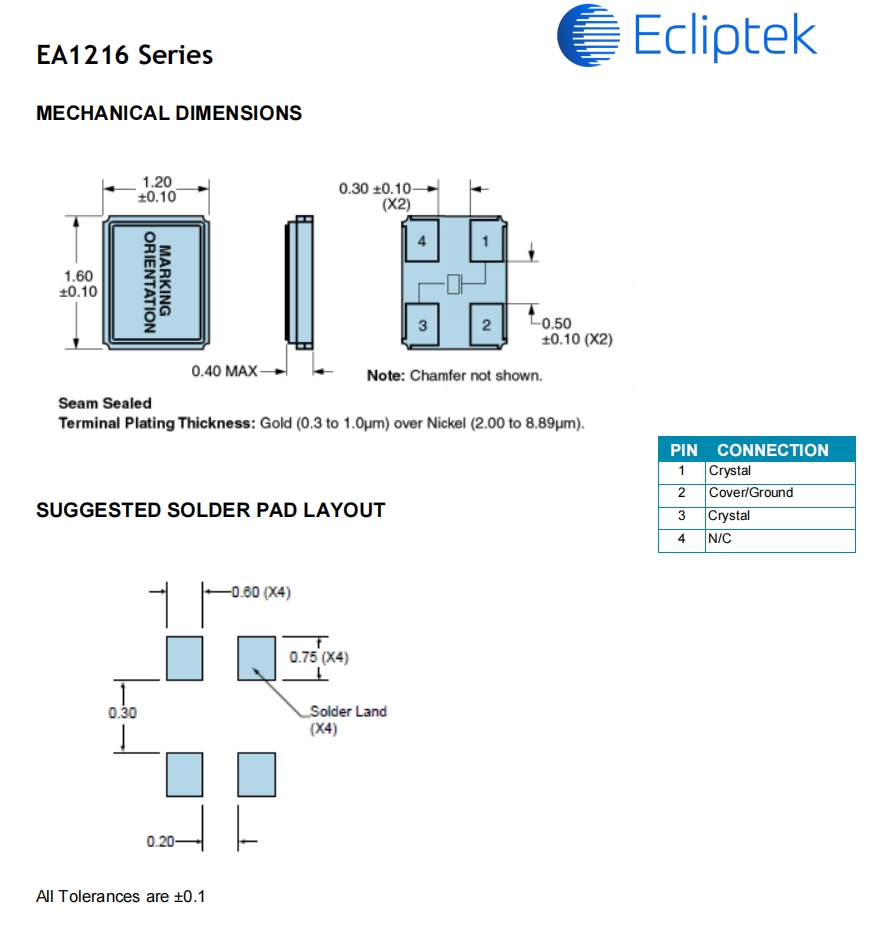

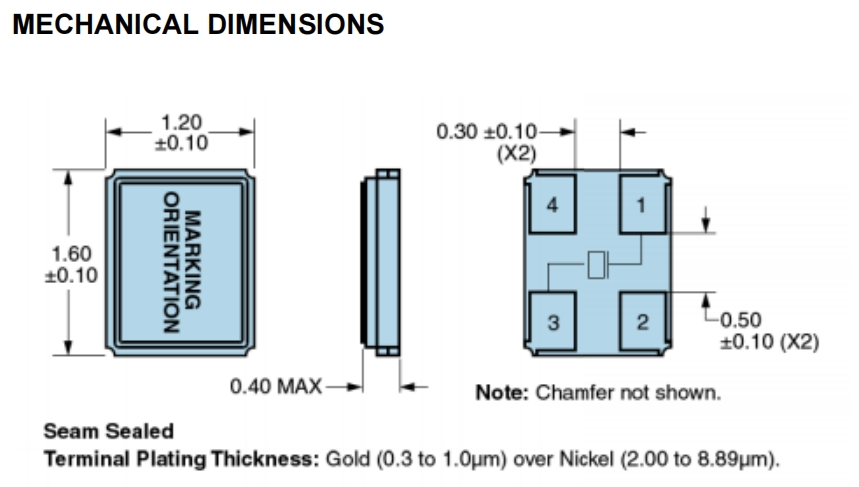

6G无线蓝牙晶振,ECLIPTEK无源谐振器,EA1216NA18-54.000MHZ-TR 尺寸
6G无线蓝牙晶振,ECLIPTEK无源谐振器,EA1216NA18-54.000MHZ-TR
日蚀晶振产品特点：
石英晶体谐振器1.2mm x 1.6mm x 0.40mm 4垫陶瓷表面安装（SMD）
低老化特性
符合RoHS标准且无铅
高可靠性能
