爱普生LV-PECL低抖动振荡器,EG-2121CA156.2500M-PGPAB,光纤通信6G晶振

爱普生LV-PECL低抖动振荡器,EG-2121CA156.2500M-PGPAB,光纤通信6G晶振，日本进口晶振，EPSON爱普生晶振，型号：EG-2121CA，编码为：EG-2121CA156.2500M-PGPAB，频率为：156.2500M，小体积晶振尺寸：7.0x5.0mm，低抖动锯振荡器（SPSO），LV-PECL输出晶振，精度50ppm，工作温度范围：-20℃至+70℃，电源电压2.5V，使用于产品中能够很容易地识别小信号，能够从容精确地处理'双极'信号，对外部电磁干扰（EMI）是高度免疫的。具有超小型，轻薄型，低相位噪声，低抖动，低功耗，低电源电压，满足低消耗电流的特点。EG-2121CA 贴片晶振适用于：通讯设备，路由器，交换机、物联网，无线网络，蓝牙模块晶振，SATA，SAS，光纤通信，10G以太网等应用。

订购热线：86-0755-27839045

CTS-1

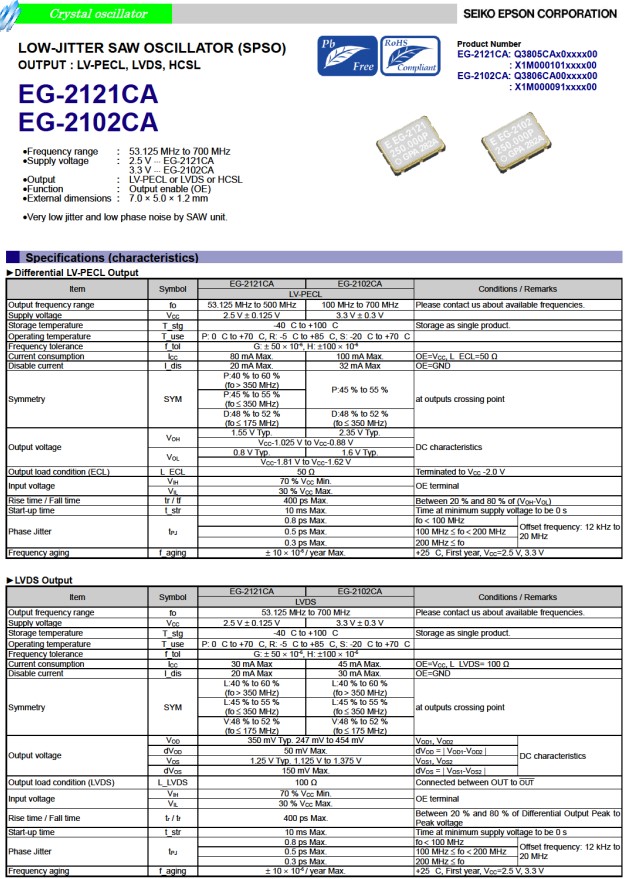

爱普生LV-PECL低抖动振荡器,EG-2121CA156.2500M-PGPAB,光纤通信6G晶振，参数图

型号		EG-2121CA 参数说明
Item	Symbol	LV-PECL	Conditions/Remarks
Output frequency range	f0	156.2500M	Please contact us for inquiries regarding available frequencies.
Supply voltage	VCC	2.5V ± 0.125V
Storage temperature	T_stg	-40°C to +100°C	Store as bare product.
Operating temperature	T_use	P : 0°C to +70°C
		R : -5°C to +85°C
		S : -20°C to +70°C
Frequency tolerance	f_tol	G : ± 50 × 10-6
		H : ±100 × 10-6
Current consumption	ICC	80mA Max.	OE = VCC , L_ECL = 50Ω
Disable current	I_dis	20mA Max.	OE = GND
Symmetry	SYM	P : 40% to 60%	at outputs crossing point
		( f0 > 350MHz )
		P : 45% to 55%
		( f0 ≦ 350MHz )
		D : 48% to 52%
		( f0 ≦ 175MHz )
Output voltage	VOH	1.55V Typ.	DC characteristics
		VCC - 1.025V to VCC - 0.88V
	VOL	0.8V Typ.
		VCC - 1.81V to VCC - 1.62V
Output load condition	L_ECL	50Ω	Terminated to VCC - 2.0V
(ECL)
Input voltage	VIH	70% VCC Min.	OE terminal
	VIL	30% VCC Max.
Rise time / Fall time	tr / tf	400ps Max.	Between 20% and 80% of ( VOH - VOL)
Start-up time	t_str	10ms Max.	Time at minimum supply voltage to be 0s
Phase Jitter	tPJ	0.8ps Max.	f0 < 100MHz	Offset frequency:
		0.5ps Max.	100MHz ≦ f0 < 200MHz	12kHz to 20MHz
		0.3ps Max.	200MHz ≦ f0
Frequency aging	f_aging	± 10 × 10-6 / year Max.	+25°C , First year , VCC = 2.5V

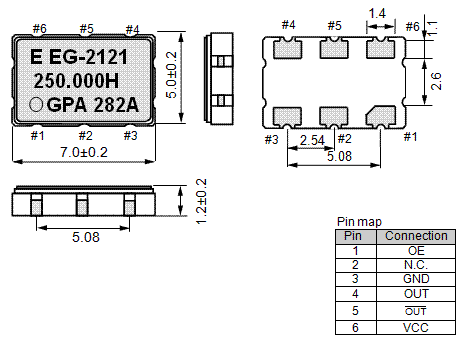

爱普生LV-PECL低抖动振荡器,EG-2121CA156.2500M-PGPAB,光纤通信6G晶振，尺寸图

爱普生LV-PECL低抖动振荡器,EG-2121CA156.2500M-PGPAB,光纤通信6G晶振

差分晶振常见的尺寸是2520mm晶振，3225mm晶振，5032mm晶振，7050mm晶振三种封装尺寸，文中所列举的是爱普生7050体积的部分差分晶振编码。均为较高的频率点，为输出LVPECL方式，电源电压范围2.5V，振荡启动时间在电源电压最低时，所需时间为0秒。爱普生差分晶振具有性能强，精密稳定，低电压的特征，普遍用于对于高速网络要求的应用.

编码	爱普生晶振	频率	尺寸	输出方式	电源电压	工作温度
X1M0000910001	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910002	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910003	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910004	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C
X1M0000910005	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-20 to 70 °C
X1M0000910006	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910007	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C
X1M0000910008	EG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910009	EG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	0 to 70 °C
X1M0000910010	EG-2102CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V	-5 to 85 °C
X1M0002010001	EG-2102CB	133.330000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010002	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010003	EG-2102CB	133.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010004	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010005	EG-2102CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0002010006	EG-2102CB	644.531300 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010007	EG-2102CB	625.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	有源晶振	-5 to 85 °C
X1M0002010008	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002010009	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010010	EG-2102CB	106.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
X1M0002210002	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002210003	EG-2102CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002210004	EG-2102CB	266.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210005	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210006	EG-2102CB	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210007	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0002210008	EG-2102CB	148.351648 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0002210009	EG-2102CB	148.350000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210010	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0002210011	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
