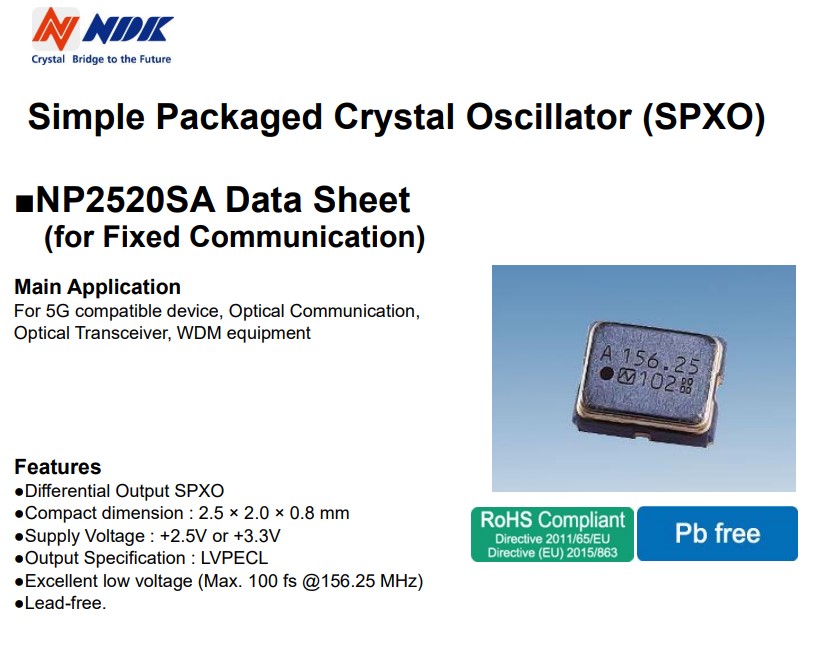

NDK6G光通信晶振,NP2520SA-133.330000MHz-NSC5326A,LVPECL低耗能振荡器，日本进口晶振，NDK晶振，型号：NP2520SA，编码为：NP2520SA-133.330000MHz-NSC5326A，频率为：133.330000 MHz，小体积晶振尺寸：2.5x2.0x0.8mm，6脚贴片晶振，LV-PECL输出差分晶体振荡器，电源电压+2.5V或+3.3V，有源晶振，石英晶振，差分输出SPXO晶体振荡器，优秀的低电压(最大 60 fs @156.25 MHz)，无铅。具有超小型，轻薄型，低相位噪声，低抖动，低功耗，低电源电压，低耗能，低损耗等特点。NP2520SA石英晶振适用于对于6G兼容设备、光通信、光收发器、波分复用设备，通讯设备，路由器，交换机、物联网，无线网络，蓝牙模块晶振，光纤通信，10G以太网等应用。
NDK6G光通信晶振,NP2520SA-133.330000MHz-NSC5326A,LVPECL低耗能振荡器，参数图
|
Item
|
Model
|
NP2520SA
|
|
Output Specification
|
LVPECL
|
|
Nominal Frequency Range (MHz)
|
133.330000MHz
|
|
Standard Frequency Range (MHz)
|
156.25
|
|
Overall Frequency Tolerance *1
|
Max. ±50 ×10-6
|
|
Operating Temperature Range (°C)
|
-40 to +85
|
|
Supply Voltage [VCC] (V)
|
+2.5 ± 5 %
|
+3.3 ± 10 %
|
|
Current
|
Enable (mA)
|
+25°C
|
Max. 60 (STAND-BY=VCC or OPEN, RL=50Ω)
|
|
Consumption
|
Stand-by (μA)
|
+25°C
|
Max. 30 (STAND-BY=GND)
|
|
Output Voltage (V)
|
VOL: Max. VCC-1.5(DC characteristics)
|
|
VOH: Min. VCC-1.1 (DC characteristics)
|
|
|
Rise Time / Fall Time (ns)
|
Max. 0.5 (20 to 80% Waveform)
|
|
Symmetry (%)
|
45 to 55 (at 50% Waveform)
|
|
Output Load (Ω)
|
50 (Terminated to VCC–2.0V)
|
|
Start-up Time (ms)
|
Max. 10
|
|
Phase Jitter (fs)
|
+3.3V, +25°C
|
Max.100 (156.25MHz)
|
(Offset Frequency : 12kHz to 20MHz)
|
|
Specification Number
|
NSC5300A
|
NSC5300B
|

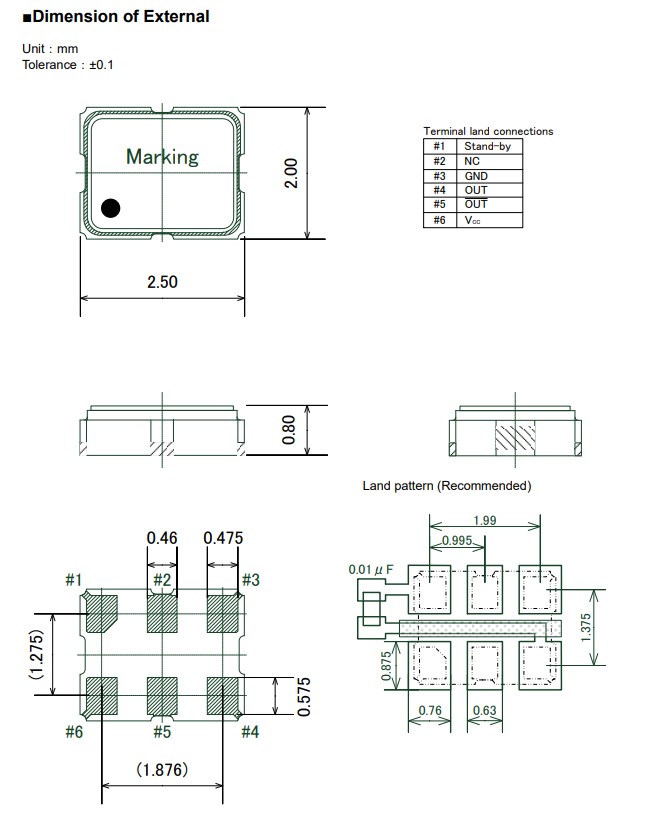

NDK6G光通信晶振,NP2520SA-133.330000MHz-NSC5326A,LVPECL低耗能振荡器，尺寸图

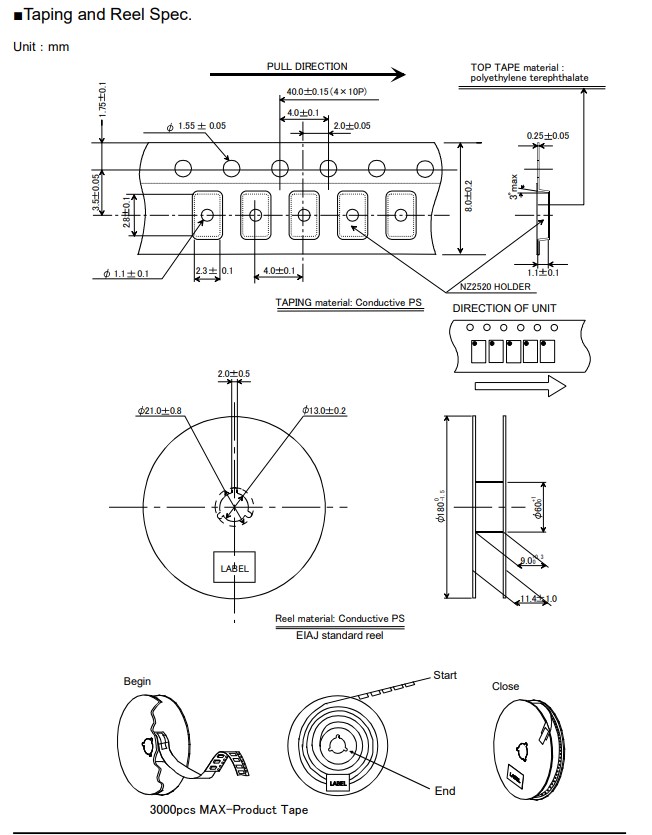

NDK6G光通信晶振,NP2520SA-133.330000MHz-NSC5326A,LVPECL低耗能振荡器
