有源晶振NZ2016SH-24.000MHZNSC5022C适用于数据控制系统，日本进口NDK晶振，NZ2016SH型号是一款小体积晶振尺寸2.0x1.6x0.7mm四脚贴片晶振，石英晶体振荡器，有源晶振，无铅环保晶振，支持宽温度范围从-40到+125°C，超小型轻薄型，重量：0.01g。这种晶体时钟晶体振荡器可以支持低频（从1.5MHz），与相同尺寸的晶体单元不容易实现。低相位抖动(Typ。100fs（12kHz至20MHz），磁带装置可自动安装红外回流（无导线）。符合AEC-Q100/Q200的标准，具有超小型，轻薄型，耐热及耐环境特点，该产品适用于汽车导航系统、汽车音响设备和针对智能手机的照相机、平板电脑、笔记本电脑、个人电脑卡等。用于音频设备和用于SDH/声波仪、WiMAX、LTE等通信设备的无线模块。数据控制系统和“基站”应用。

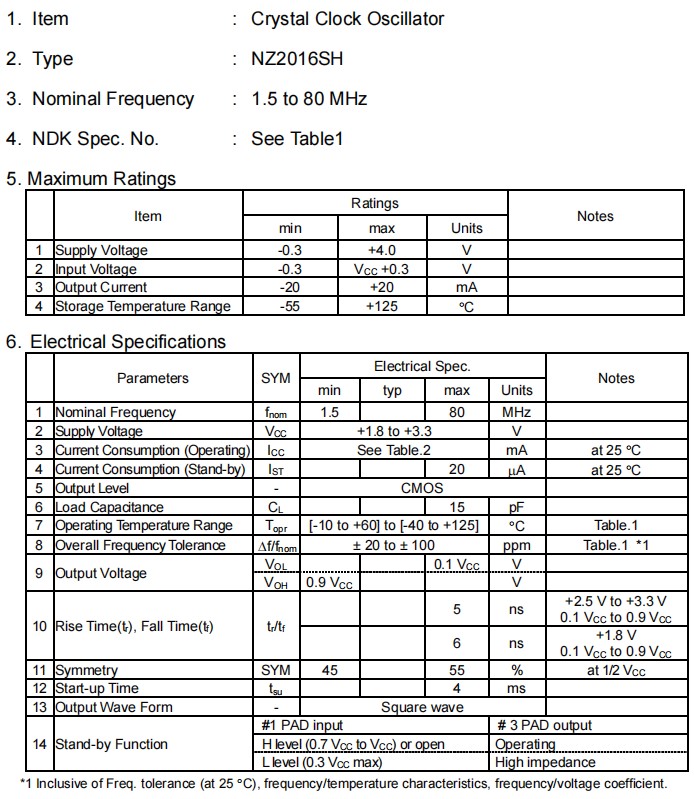

有源晶振NZ2016SH-24.000MHZNSC5022C适用于数据控制系统，参数图
|
NZ2016SH
|
|
Electrical Spec.
|
|
|
Parameters
|
SYM
|
min
|
typ
|
max
|
Units
|
Notes
|
|
Nominal Frequency
|
fnom
|
1.5
|
|
80
|
MHz
|
|
|
Supply Voltage
|
VCC
|
+1.8 to +3.3
|
V
|
|
Current Consumption
(Operating)
|
ICC
|
See Table.2
|
mA
|
at 25℃
|
Current Consumption
(Stand-by)
|
IST
|
|
|
20
|
mA
|
at 25℃
|
|
Output Level
|
-
|
CMOS
|
|
|
Load Capacitance
|
CL
|
|
|
15
|
pF
|
|
Operating Temperature
Range
|
Topr
|
[-10 to +60] to [-40 to +125]
|
℃
|
Table.1
|
|
Overall Frequency Tolerance
|
Df/fnom
|
± 20 to ± 100
|
ppm
|
Table.1 *1
|
|
Output Voltage
|
VOL
|
|
|
0.1 VCC
|
V
|
|
|
VOH
|
0.9 VCC
|
|
V
|
|
|
Rise Time(tr), Fall Time(tf)
|
tr/tf
|
|
|
5
|
ns
|
+2.5 V to +3.3 V
0.1 VCC to 0.9 VCC
|
|
|
|
6
|
ns
|
+1.8 V
0.1 VCC to 0.9 VCC
|
|
Symmetry
|
SYM
|
45
|
|
55
|
%
|
at 1/2 VCC
|
|
Start-up Time
|
tsu
|
|
|
4
|
ms
|
|
|
Output Wave Form
|
-
|
Square wave
|
|
|
Stand-by Function
|
#1 PAD input
|
# 3 PAD output
|
H level (0.7 VCC to VCC) or
open L level (0.3 VCC max)
|
Operating
|
|
High impedance
|

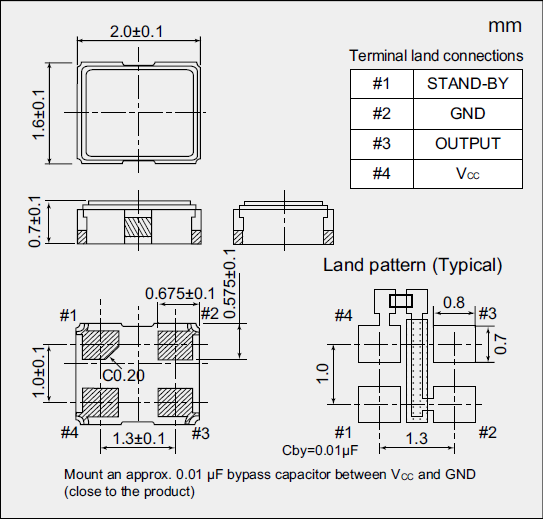

有源晶振NZ2016SH-24.000MHZNSC5022C适用于数据控制系统，尺寸图
有源晶振NZ2016SH-24.000MHZNSC5022C适用于数据控制系统
热影响
重复的温度巨大变化可能会降低受损害的石英晶振产品特性,并导致塑料封装里的线路击穿.必须避免这种情况.
安装方向
石英晶体振荡器的不正确安装会导致故障以及崩溃,因此安装时,请检查安装方向是否正确.
通电
不建议从中间电位和/或极快速通电,否则会导致无法产生振荡和/或非正常工作.
有源晶振的负载电容与阻抗
负载电容与阻抗有源晶振设置一个规定的负载阻抗值.当一个值除了规定的一个设置为负载阻抗输出频率和输出电平不会满足时,这可能会导致问题例如：失真的输出波形.特别是设置电抗,根据规范的负载阻抗.输出频率和输出电平,当测量输出频率或输出水平,石英晶体振荡器调整的输入阻抗,测量仪器的负载阻抗晶体振荡器.当输入阻抗的测量仪器,不同的负载阻抗的晶体振荡器,测量输出频率或输出水平高,阻抗阻抗测量可以忽略.
抗冲击
抗冲击是指晶振产品可能会在某些条件下受到损坏.例如从桌上跌落,摔打,高空抛压或在贴装过程中受到冲击.如果产品已受过冲击请勿使用.因为无论何种贴片石英晶振,其内部晶片都是贴片晶振制作而成的,高空跌落摔打都会给晶振照成不良影响. 有源晶振NZ2016SH-24.000MHZNSC5022C适用于数据控制系统
耐焊性：
将晶振加热包装材料至+150℃以上会破坏产品特性或损害产品.如需在+150℃以上焊接石英晶振,建议使用有源贴片晶振产品.在下列回流条件下,对贴片晶振产品甚至晶振使用更高温度,会破坏晶振特性.建议使用下列配置情况的回流条件.安装这些贴片晶振之前,应检查焊接温度和时间.同时,在安装条件更改的情况下,请再次进行检查.如果需要焊接的晶振产品在下列配置条件下进行焊接,请联系我们以获取耐热的相关信息.
有源晶振NZ2016SH-24.000MHZNSC5022C适用于数据控制系统，日本电波工业株式NDK晶振已经建立和正在推动一项中期计划的具体减排目标，以减少污染的排放是地球变暖的原因。它也有助于减少（抑制）CO2排放量，通过使用最先进的技术，实现小型化，以及减少石英晶体谐振器,石英晶体的重量和功耗，以支持社会的需要。
日本电波工业株式NDK晶振的新概念的温补晶振,石英晶体振荡器器件。通过产品生命周期提高整体节能贡献和环境绩效的举措。制造-环境友好生产—优化/效率的节能贡献—通过制造致密/复杂产品减少资源节约—环境消除/减少环境负荷物质—这些是倡议的支柱。制造业-环保生产—我们将介绍一些情况下，发现CO2排放量的产品生命周期使用环境LCA方法。
|
