STDMUS2-32.768K,3215无源音叉晶振,穿戴设备晶振
STDMUS2-32.768K是一款3215封装高精度无源音叉晶振,专为智能穿戴设备量身打造,是穿戴产品实时时钟系统的核心基础器件.该晶振标准频率32.768KHz,为行业通用计时基准频点,精准分频稳定,可有效保障智能手表,智能手环等设备的计时,日历,休眠唤醒,定时提醒等功能精准运行,大幅降低日常走时误差.采用3.2×1.5mm微型贴片封装,体型小巧轻薄,完美适配穿戴设备狭小紧凑的PCB布局,助力终端产品实现轻薄化,微型化设计.依托优质音叉石英谐振工艺,器件具备高Q值,低阻抗特性,振荡稳定,抗干扰能力强,日常佩戴中的轻微震动,温度波动均不会影响计时精度.整体功耗极低,高度适配穿戴设备电池供电模式,有效延长设备待机与整机续航时长.产品工艺成熟,一致性高,抗震防潮,耐温性优异,符合RoHS环保标准,适配自动化SMT量产,广泛应用于各类智能穿戴,便携健康监测设备等计时场景.
STDMUS2-32.768K,3215无源音叉晶振,穿戴设备晶振,参数表
|
原厂型号 Original model ：
|
STDMUS2-32.768K
|
|
品牌 brand ：
|
NDK晶振
|
|
型号名称 Model name：
|
STDMUS2
|
|
Type 系列：
|
MHz Crystal
|
|
频率 frequency ：
|
32.768kHz
|
|
Frequency Stability频率稳定度
|
-
|
|
frequency tolerance频率容差
|
±20ppm
|
|
Load capacitance 负载电容
|
12.5pF
|
|
Size / Dimension 尺寸
|
3215mm
|
|
Package Height 厚度
|
0.8mm
|
|
ESR (Equivalent Series Resistance)ESR（等效串联电阻）
|
-
|
|
Operating Temperature 工作温度
|
-40°C ~ 125°C
|
|
Termination 脚位
|
2-Pad
|
|
Package Type 封装类型
|
2-SMD
|
|
Packaging 包装
|
Tape and Reel
|
|
Mounting Style 安装方式
|
Surface Mount
|

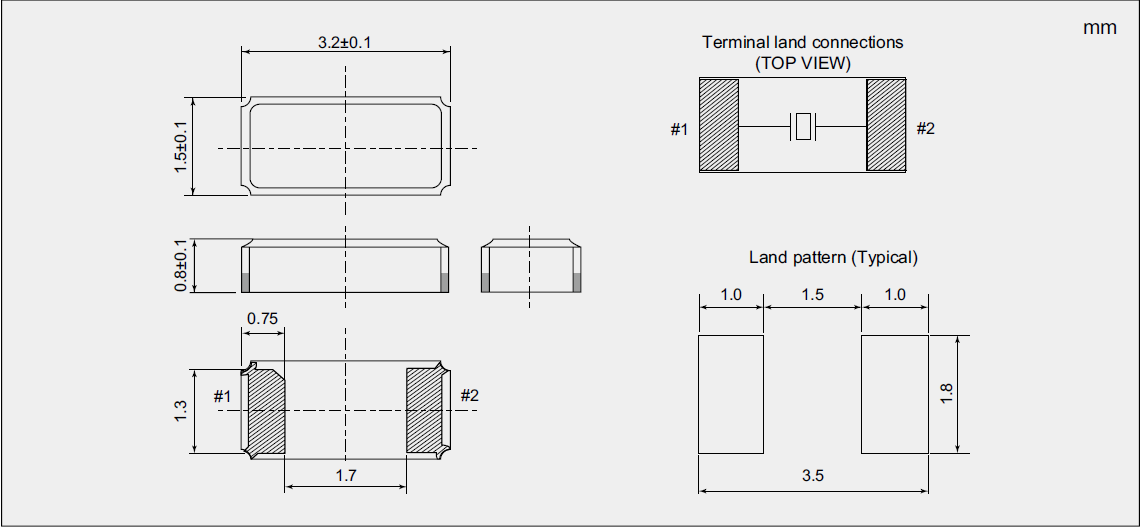

STDMUS2-32.768K,3215无源音叉晶振,穿戴设备晶振,尺寸图
|
产品编码
|
品牌
|
型号
|
频率
|
频率公差
|
负载电容
|
工作温度范围
|
|
LFXTAL003000
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
12.50pF
|
-40°C to 85°C
|
|
LFXTAL016178
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
6.00pF
|
-40°C to 85°C
|
|
LFXTAL016178REEL
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003000REEL
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL050632REEL
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±10ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003000BULK
|
晶振厂家
|
85SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL016178BULK
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL015822REEL
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003003REEL
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL003004REEL
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL010193REEL
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL010193BULK
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003003BULK
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL015822BULK
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003004BULK
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL023562
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±30ppm
|
12.5pF
|
-40°C ~ 85°C
|
