XRCGB25M000F3A00R0,Murata村田晶振,2016车规晶振
康华尔电子作为Murata村田品牌正规授权代理商,主推XRCGB25M000F3A00R0属于2016贴片晶振,是满足AEC-Q200车规标准的高精度无源石英谐振器.这款25MHz车载专用晶振具备顶级温度稳定性能,在-40℃~+125℃超宽车规温域内,频率温漂控制在±35ppm以内,常温精度可达±30ppm,完美适配车载高低温交变的严苛工况.产品年老化误差极低,长期车载震动,高温暴晒环境下无明显频率衰减,时序输出持久精准稳定.依托村田成熟石英振荡技术,等效串联电阻控制优异,起振平顺,信号纯净,可有效规避车载设备时序偏移,通信异常,程序运行紊乱等问题,为车载电子系统提供高可靠基准时钟,是车载设备量产优选器件,咨询热线:0755-27838351.
XRCGB25M000F3A00R0,Murata村田晶振,2016车规晶振
|
原厂型号 Original model ：
|
XRCGB25M000F3A00R0
|
|
品牌 brand ：
|
村田晶振
|
|
型号名称 Model name：
|
XRCGB
|
|
Type 系列：
|
MHz Crystal
|
|
频率 frequency ：
|
25M
|
|
Frequency Stability频率稳定度
|
-
|
|
frequency tolerance频率容差
|
±35PPm
|
|
Load capacitance 负载电容
|
6pF
|
|

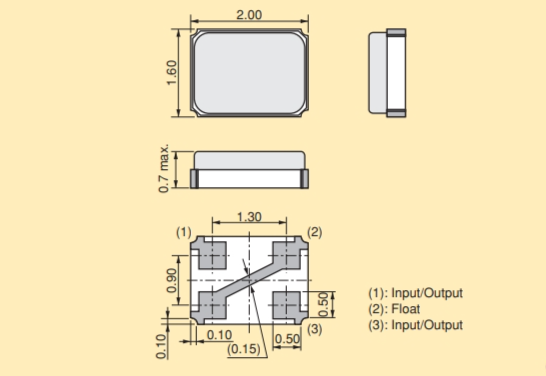

Size / Dimension 尺寸
|
2016
|
|
Package Height 厚度
|
0.7mm
|
|
ESR (Equivalent Series Resistance)ESR（等效串联电阻）
|
-
|
|
Operating Temperature 工作温度
|
-40°C ~ 125°C
|
|
Termination 脚位
|
4-Pad
|
|
Package Type 封装类型
|
4-Smd
|
|
Packaging 包装
|
Tape and Reel
|
|
Mounting Style 安装方式
|
Surface Mount
|
XRCGB25M000F3A00R0,Murata村田晶振,2016车规晶振
|
产品编码
|
品牌
|
型号
|
频率
|
频率公差
|
负载电容
|
工作温度范围
|
|
LFXTAL003000
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
12.50pF
|
-40°C to 85°C
|
|
LFXTAL016178
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
6.00pF
|
-40°C to 85°C
|
|
LFXTAL016178REEL
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003000REEL
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL050632REEL
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±10ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003000BULK
|
晶振厂家
|
85SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL016178BULK
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL015822REEL
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003003REEL
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL003004REEL
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL010193REEL
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL010193BULK
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003003BULK
|
IQD伊克德晶振
|
91SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL015822BULK
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
6pF
|
-40°C ~ 85°C
|
|
LFXTAL003004BULK
|
IQD伊克德晶振
|
90SMX
|
32.768KHz
|
±20ppm
|
12.5pF
|
-40°C ~ 85°C
|
|
LFXTAL023562
|
IQD伊克德晶振
|
85SMX
|
32.768KHz
|
±30ppm
|
12.5pF
|
-40°C ~ 85°C
|
