特兰斯科SMD晶体,CS21-F5050CQ08-24.576MHz-TR,汽车影音晶振，美国进口晶振，Transko特兰斯科晶振，CS21系列晶振，编码为：CS21-F5050CQ08-24.576MHz-TR，频率为：24.576MHz，小体积晶振尺寸：2.0x1.6x0.46mm，四脚贴片晶振，SMD晶体，无源晶振，石英晶体，石英晶体谐振器，耐高温晶振，无铅环保晶振，工作温度范围：-40℃至85℃。紧耐差和稳定性可提供汽车级AEC-Q200合格版本，适用于ROHS回流。具有超小型，轻薄型，耐热及耐环境特点。石英晶振适用于：可穿戴设备，小型便捷式设备，智能手机，平板电脑，汽车影音设备，车载控制器，智能家居，无线网络，蓝牙模块，数码电子等应用。

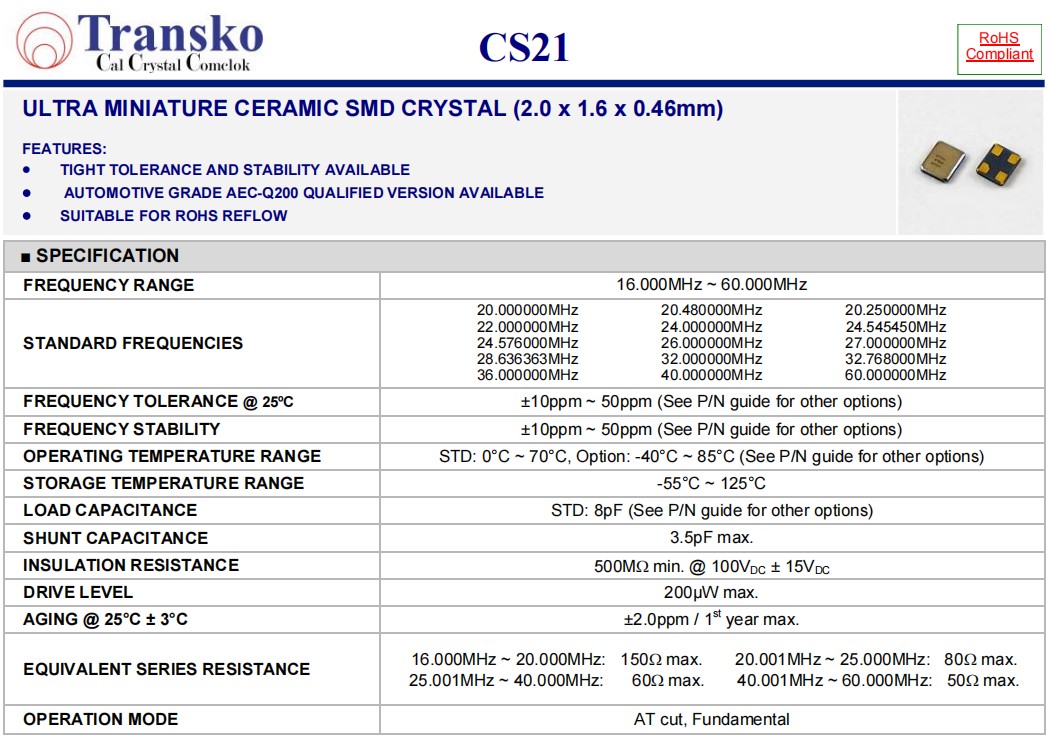

特兰斯科SMD晶体,CS21-F5050CQ08-24.576MHz-TR,汽车影音晶振,参数表
|
FREQUENCY RANGE
|
24.576000MHz
|
|
STANDARD FREQUENCIES
|
20.000000MHz
22.000000MHz
24.576000MHz
28.636363MHz
36.000000MHz
|
20.480000MHz
24.000000MHz
26.000000MHz
32.000000MHz
40.000000MHz
|
20.250000MHz
24.545450MHz
27.000000MHz
32.768000MHz
60.000000MHz
|
|
FREQUENCY TOLERANCE @ 25ºC
|
±10ppm ~ 50ppm (See P/N guide for other options)
|
|
FREQUENCY STABILITY
|
±10ppm ~ 50ppm (See P/N guide for other options)
|
|
OPERATING TEMPERATURE RANGE
|
STD: 0°C ~ 70°C, Option: -40°C ~ 85°C (See P/N guide for other options)
|
|
STORAGE TEMPERATURE RANGE
|
-55°C ~ 125°C
|
|
LOAD CAPACITANCE
|
STD: 8pF (See P/N guide for other options)
|
|
SHUNT CAPACITANCE
|
3.5pF max.
|
|
INSULATION RESISTANCE
|
500MΩ min. @ 100VDC ± 15VDC
|
|
DRIVE LEVEL
|
200µW max.
|
|
AGING @ 25°C ± 3°C
|
±2.0ppm / 1st year max.
|
|
EQUIVALENT SERIES RESISTANCE
|
16.000MHz ~ 20.000MHz:
25.001MHz ~ 40.000MHz:
|
150Ω max.
60Ω max.
|
20.001MHz ~ 25.000MHz: 80Ω max.
40.001MHz ~ 60.000MHz: 50Ω max.
|
|
OPERATION MODE
|
AT cut, Fundamental
|

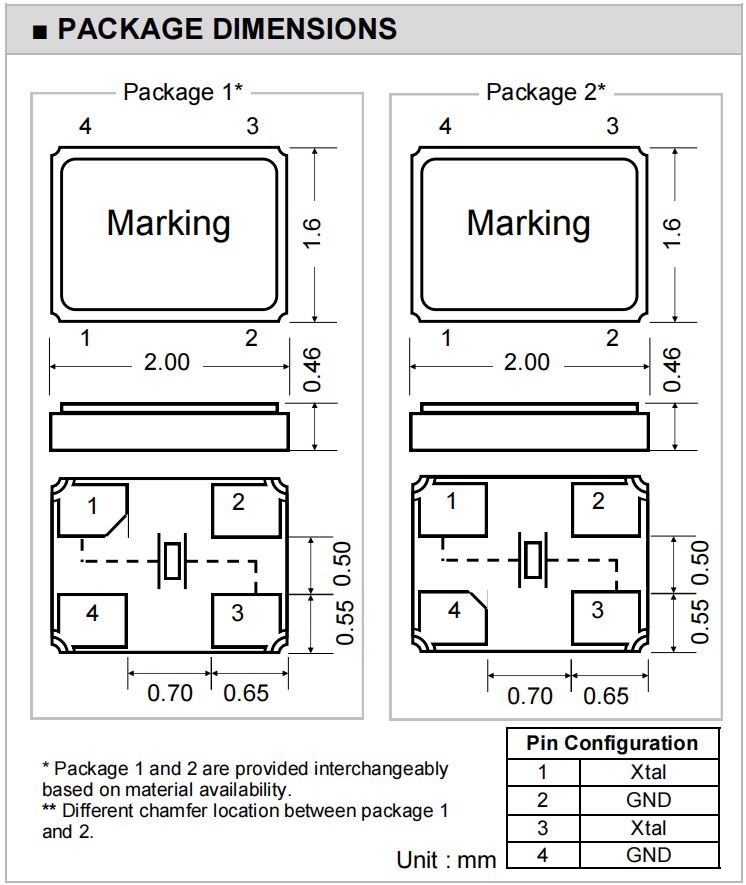

特兰斯科SMD晶体,CS21-F5050CQ08-24.576MHz-TR,汽车影音晶振,尺寸图
